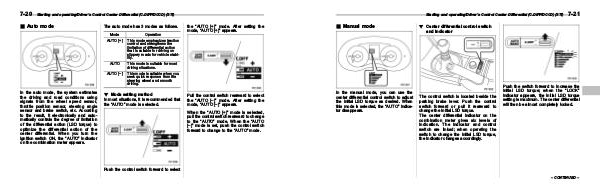

Subaru WRX & WRX STI Manuals 2018 WRX & WRX STI Owner’s Manual | Page 373

Starting and operating/Driver’s Control Center Differential (C.DIFF/DCCD) (STI)
& Manual mode
In the manual mode, you can use the
center differential control switch to adjust
the initial LSD torque as desired. When
this mode is selected, the “AUTO” indica-
tor disappears.
7-21
! Center differential control switch
and indicator
The control switch is located beside the
parking brake lever. Push the control
switch forward or pull it rearward to
change the initial LSD torque.
The center differential indicator on the
combination meter gives six levels of
indication. The indicator and control
switch are linked; when operating the
switch to change the initial LSD torque,
the indicator changes accordingly.
Push the switch forward to increase the
initial LSD torque; when the “LOCK”
indicator appears, the initial LSD torque
setting is maximum. The center differential
will then be almost completely locked.
– CONTINUED –
