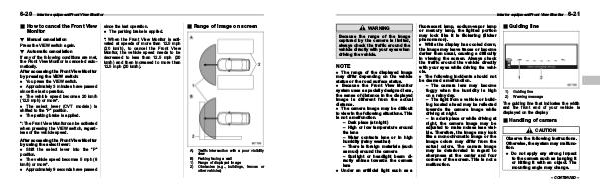

Subaru WRX & WRX STI Manuals 2018 WRX & WRX STI Owner’s Manual | Page 350

6-20
Interior equipment/Front View Monitor
& How to cancel the Front View
Monitor since the last operation.
. The parking brake is applied.
! Manual cancellation
Press the VIEW switch again.
! Automatic cancellation
If any of the following conditions are met,
the Front View Monitor is canceled auto-
matically.
After accessing the Front View Monitor
by pressing the VIEW switch:
. You press the VIEW switch.
. Approximately 3 minutes have passed
since the last operation.
. The vehicle speed becomes 20 km/h
(12.5 mph) or more*.
. The select lever (CVT models) is
shifted to the “P” position.
. The parking brake is applied. *: When the Front View Monitor is acti-
vated at speeds of more than 12.5 mph
(20 km/h), to cancel the Front View
Monitor, the vehicle speed needs to be
decreased to less than 12.5 mph (20
km/h) and then increased to more than
12.5 mph (20 km/h).
& Range of image on screen
*: The Front View Monitor can be activated
when pressing the VIEW switch, regard-
less of the vehicle speed.
After accessing the Front View Monitor
by using the select lever:
. Shift the select lever into the “P”
position.
. The vehicle speed becomes 5 mph (8
km/h) or more*.
. Approximately 9 seconds have passed
A)
B)
1)
2)
Traffic intersection with a poor visibility
view
Parking facing a wall
Range of displayed image
Obstacles (e.g., buildings, fences or
other vehicles)
