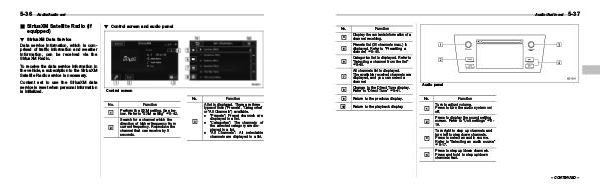

Audio / Audio set
5-37
No.
& 4
& 5
& 6
& 7
& 8
Function Display the contents information of a channel receiving.
Presets list( 30 channels max.) is displayed. Refer to“ Presetting a channel” F5-40.
Categories list is displayed. Refer to“ Selecting a channel from the list” F5-40.
All channels list is displayed. The available received channels are displayed, and you can select a channel.
Change to the Direct Tune display. Refer to“ Direct Tune” F5-41.
Audio panel
& 9 |
Return to the previous display. |
& 10 |
Return to the playback display. |
No.
& 1
& 2
& 3
& 4
Function Turn to adjust volume. Press to turn the audio system on / off.
Press to display the sound setting screen. Refer to“ Unit settings” F5- 18.
Turn right to step up channels and turn left to step down channels. Press to select an audio source. Refer to“ Selecting an audio source” F5-17.
Press to step up / down channels. Press and hold to step up / down channels fast.
– CONTINUED –
