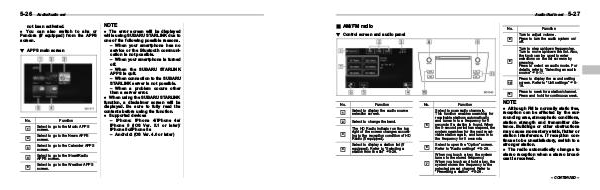

Subaru WRX & WRX STI Manuals 2018 WRX & WRX STI Owner’s Manual | Page 263

Audio/Audio set
& AM/FM radio
No.
! Control screen and audio panel
No.
Function
1
& Select to display the audio source
selection screen.
2
& Select to change the band.
3
& The HD Radio indicator on the top
right of the screen changes accord-
ing to the reception condition of HD
Radio (if equipped).
4
& Select to display a station list (if
equipped). Refer to “Selecting a
station from the list” F5-28.
No. Function
5
& Select to scan radio channels.
This function enables searching for
receivable stations automatically,
and tunes in to a frequency for 5
seconds if a station is found. When
the 5-second period has elapsed, the
system searches for the next recei-
vable station again, and tunes in to
the frequency for 5 seconds.
6
& Select to open the “Option” screen.
Refer to “Radio settings” F5-29.
7
& When you touch a key, the system
tunes to the stored frequency.
When you touch and hold a key, the
system stores the frequency to the
selected preset channel. Refer to
“Presetting a station” F5-28.
5-27
Function
8
& Turn to adjust volume.
Press to turn the audio system on/
off.
9
& Turn to step up/down frequencies.
Turn to move up/down the list. Also,
the knob can be used to enter
selections on the list screens by
pressing.
Press to select an audio mode. For
details, refer to “Selecting an audio
source” F5-17.
10
& Press to display the sound setting
screen. Refer to “Unit settings” F5-
18.
11
& Press to seek for a station/channel.
Press and hold for continuous seek.
NOTE
. Although FM is normally static free,
reception can be affected by the sur-
rounding area, atmospheric con
