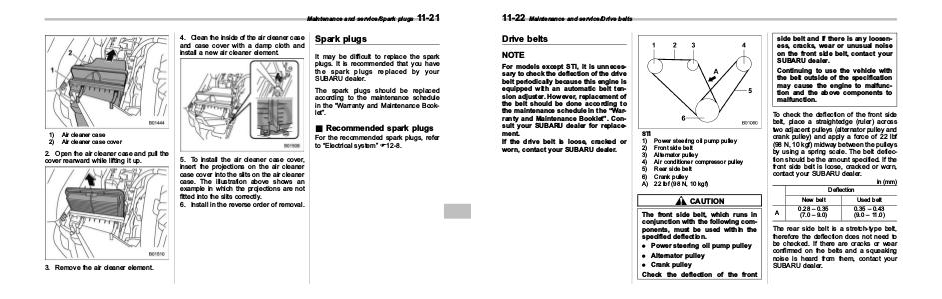

Maintenance and service / Spark plugs 11-21
1) |
Air cleaner case |
2) |
Air cleaner case cover |
2. Open the air cleaner case and pull the cover rearward while lifting it up.
4. Clean the inside of the air cleaner case and case cover with a damp cloth and install a new air cleaner element.
5. To install the air cleaner case cover, insert the projections on the air cleaner case cover into the slits on the air cleaner case. The illustration above shows an example in which the projections are not fitted into the slits correctly.
6. Install in the reverse order of removal.
Spark plugs
It may be difficult to replace the spark plugs. It is recommended that you have the spark plugs replaced by your SUBARU dealer.
The spark plugs should be replaced according to the maintenance schedule in the“ Warranty and Maintenance Booklet”.
& Recommended spark plugs
For the recommended spark plugs, refer to“ Electrical system” F12-8.
3. Remove the air cleaner element.
