Starting and operating/Reverse Automatic Braking System

narrow garages
– Wheel tracks or a hole is present
in the ground of the reversing
direction
– When reversing over a drainage
cover (grate cover)

7-67

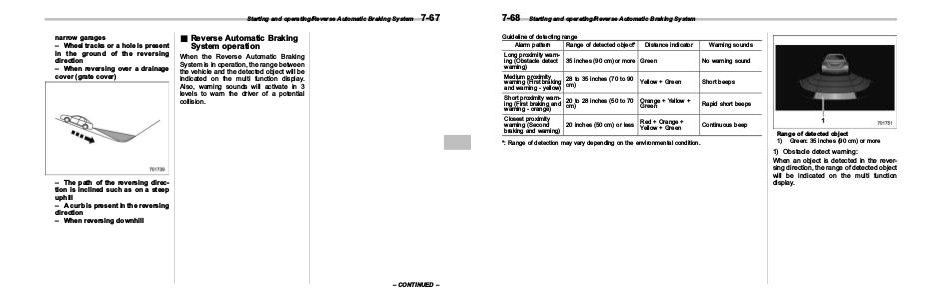

& Reverse Automatic Braking
System operation
When the Reverse Automatic Braking
System is in operation, the range between
the vehicle and the detected object will be
indicated on the multi function display.
Also, warning sounds will activate in 3
levels to warn the driver of a potential
collision.

– The path of the reversing direction is inclined such as on a steep
uphill
– A curb is present in the reversing
direction
– When reversing downhill

– CONTINUED –
