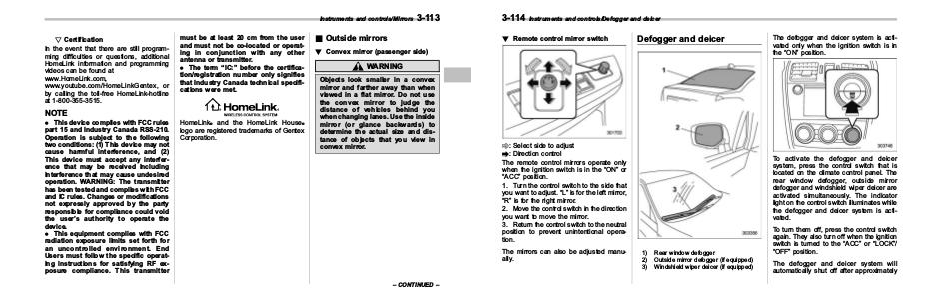

3-114

Instruments and controls/Defogger and deicer

! Remote control mirror switch

Defogger and deicer

: Select side to adjust
: Direction control
The remote control mirrors operate only
when the ignition switch is in the “ON” or
“ACC” position.
1. Turn the control switch to the side that
you want to adjust. “L” is for the left mirror,
“R” is for the right mirror.
2. Move the control switch in the direction
you want to move the mirror.
3. Return the control switch to the neutral
position to prevent unintentional operation.
The mirrors can also be adjusted manually.

The defogger and deicer system is activated only when the ignition switch is in
the “ON” position.

To activate the defogger and deicer
system, press the control switch that is
located on the climate control panel. The
rear window defogger, outside mirror
defogger and windshield wiper deicer are
activated simultaneously. The indicator
light on the control switch illuminates while
the defogger and deicer system is activated.

1)
2)
3)

Rear window defogger
Outside mirror defogger (if equipped)
Windshield wiper deicer (if equipped)

To turn them off, press the control switch
again. They also turn off when the ignition
switch is turned to the “ACC” or “LOCK”/
“OFF” position.
The defogger and deicer system will
automatically shut off after approximately
