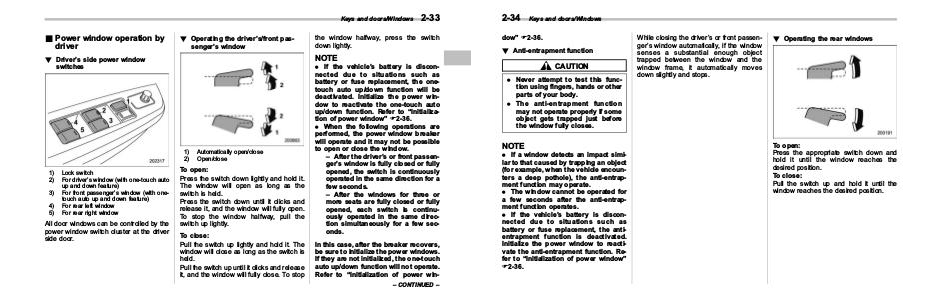

Subaru WRX & WRX STI Manuals 2017 WRX & WRX STI Owner’s Manual | Page 126

Keys and doors/Windows

& Power window operation by
driver

! Operating the driver’s/front passenger’s window

1)
2)

3)
4)
5)

Lock switch
For driver’s window (with one-touch auto
up and down feature)
For front passenger’s window (with onetouch auto up and down feature)
For rear left window
For rear right window

All door windows can be controlled by the
power window switch cluster at the driver
side door.

the window halfway, press the switch
down lightly.

NOTE

! Driver’s side power window
switches

1)
2)

2-33

Automatically open/close
Open/close

To open:
Press the switch down lightly and hold it.
The window will open as long as the
switch is held.
Press the switch down until it clicks and
release it, and the window will fully open.
To stop the window halfway, pull the
switch up lightly.
To close:
Pull the switch up lightly and hold it. The
window will close as long as the switch is
held.
Pull the switch up until it clicks and release
it, and the window will fully close. To stop

. If the vehicle’s battery is disconnected due to situations such as
battery or fuse replacement, the onetouch auto up/down function will be
deactivated. Initialize the power window to reactivate the one-touch auto
up/down function. Refer to “Initialization of power window” F2-36.
. When the following operations are
performed, the power window breaker
will operate and it may not be possible
to open or close the window.
– After the driver’s or front passenger’s window is fully closed or fully
opened, the switch is continuously
operated in the same direction for a
few seconds.
– After the windows for three or
more seats are fully closed or fully
opened, each switch is continuously operated in the same direction simultaneously for a few seconds.
In this case, after the breaker recovers,
be sure to initialize the power windows.
If they are not initialized, the one-touch
auto up/down function will not operate.
Refer to “Initialization of power win– CONTINUED –
