Subaru WRX & WRX STI Manuals 2016 WRX & WRX STI Owner’s Manual | Page 410

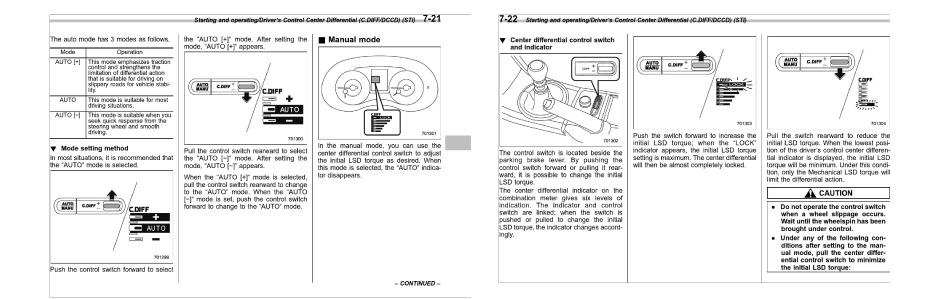

Starting and operating/Driver’s Control Center Differential (C.DIFF/DCCD) (STI)

The auto mode has 3 modes as follows.
Mode

Operation

AUTO [+]

& Manual mode

Pull the control switch rearward to select
the “AUTO [−]” mode. After setting the
mode, “AUTO [−]” appears.

In the manual mode, you can use the
center differential control switch to adjust
the initial LSD torque as desired. When
this mode is selected, the “AUTO” indicator disappears.

This mode is suitable for most
driving situations.

AUTO [−]

the “AUTO [+]” mode. After setting the
mode, “AUTO [+]” appears.

This mode emphasizes traction
control and strengthens the
limitation of differential action
that is suitable for driving on
slippery roads for vehicle stability.

AUTO

7-21

This mode is suitable when you
seek quick response from the
steering wheel and smooth
driving.

! Mode setting method
In most situations, it is recommended that
the “AUTO” mode is selected.

When the “AUTO [+]” mode is selected,
pull the control switch rearward to change
to the “AUTO” mode. When the “AUTO
[−]” mode is set, push the control switch
forward to change to the “AUTO” mode.

Push the control switch forward to select
– CONTINUED –
