Subaru WRX & WRX STI Manuals 2016 WRX & WRX STI Owner’s Manual | Page 383

6-12

Interior equipment/Under–floor storage compartment

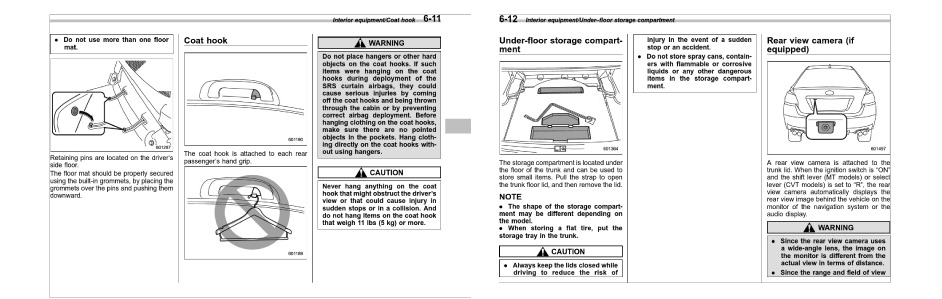

Under-floor storage compartment

The storage compartment is located under
the floor of the trunk and can be used to
store small items. Pull the strap to open
the trunk floor lid, and then remove the lid.

NOTE
. The shape of the storage compartment may be different depending on
the model.
. When storing a flat tire, put the
storage tray in the trunk.

CAUTION
. Always keep the lids closed while
driving to reduce the risk of

injury in the event of a sudden
stop or an accident.
. Do not store spray cans, containers with flammable or corrosive
liquids or any other dangerous
items in the storage compartment.

Rear view camera (if
equipped)

A rear view camera is attached to the
trunk lid. When the ignition switch is “ON”
and the shift lever (MT models) or select
lever (CVT models) is set to “R”, the rear
view camera automatically displays the
rear view image behind the vehicle on the
monitor of the navigation system or the
audio display.

WARNING
. Since the rear view camera uses
a wide-angle lens, the image on
the monitor is different from the
actual view in terms of distance.
. Since the range and field of view
