3-56

Instruments and controls/Multi function display

! Triple meter screen

Item

Details
Average vehicle speed (Average
vehicle speed for the entire driving
time from when the trip meter was
reset)
Lifetime fuel consumption
Engine oil temperature (except
STI)
Accelerator opening ratio

When the Vehicle Dynamics Control system activates, the tires illuminate in yellow
and the Vehicle Dynamics Control system
operating indicator flashes.
1) Activation status of the ABS (Anti-lock
Brake System)
2) Vehicle Dynamics Control system operating indicator (flashing in yellow)
3) History of Vehicle Dynamics Control
system activation

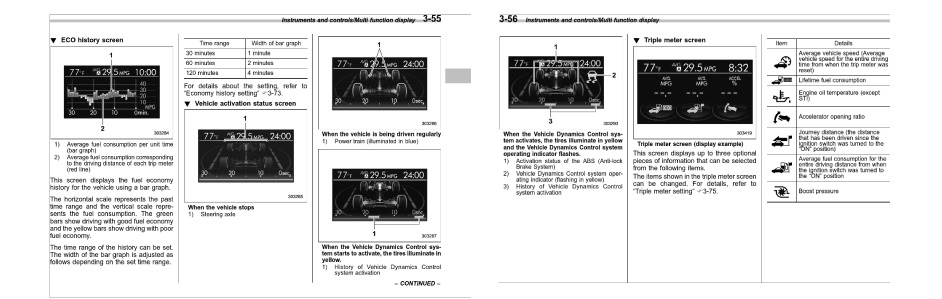

Triple meter screen (display example)

This screen displays up to three optional
pieces of information that can be selected
from the following items.
The items shown in the triple meter screen
can be changed. For details, refer to
“Triple meter setting” F3-75.

Journey distance (the distance
that has been driven since the
ignition switch was turned to the
“ON” position)
Average fuel consumption for the
entire driving distance from when
the ignition switch was turned to
the “ON” position
Boost pressure
