3-54

Instruments and controls/Multi function display

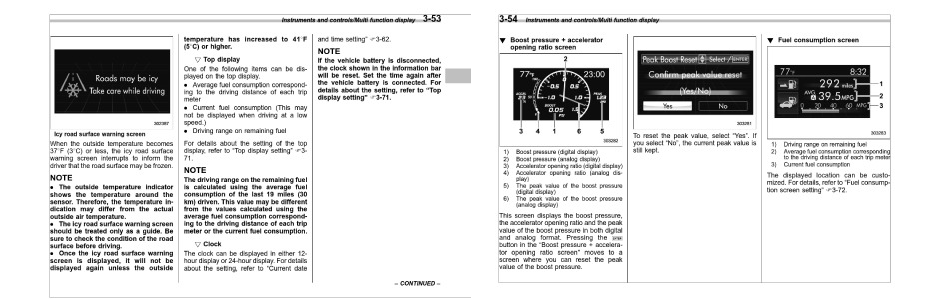

! Boost pressure + accelerator
opening ratio screen

1)
2)
3)
4)
5)
6)

Boost pressure (digital display)
Boost pressure (analog display)
Accelerator opening ratio (digital display)
Accelerator opening ratio (analog display)
The peak value of the boost pressure
(digital display)
The peak value of the boost pressure
(analog display)

This screen displays the boost pressure,
the accelerator opening ratio and the peak
value of the boost pressure in both digital
and analog format. Pressing the
button in the “Boost pressure + accelerator opening ratio screen” moves to a
screen where you can reset the peak
value of the boost pressure.

! Fuel consumption screen

To reset the peak value, select “Yes”. If
you select “No”, the current peak value is
still kept.

1)
2)
3)

Driving range on remaining fuel
Average fuel consumption corresponding
to the driving distance of each trip meter
Current fuel consumption

The displayed location can be customized. For details, refer to “Fuel consumption screen setting” F3-72.
