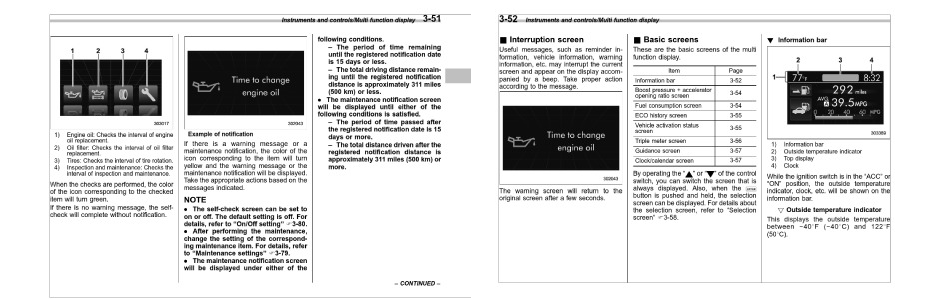

3-52

Instruments and controls/Multi function display

& Interruption screen

& Basic screens

Useful messages, such as reminder information, vehicle information, warning
information, etc. may interrupt the current
screen and appear on the display accompanied by a beep. Take proper action
according to the message.

These are the basic screens of the multi
function display.
Item

! Information bar

Page
3-52

Boost pressure + accelerator
opening ratio screen

3-54

Fuel consumption screen

3-54

ECO history screen

3-55

Vehicle activation status
screen

3-55

Triple meter screen

3-56

Guidance screen

3-57

Clock/calendar screen

The warning screen will return to the
original screen after a few seconds.

Information bar

3-57

By operating the “ ” or “ ” of the control
switch, you can switch the screen that is
always displayed. Also, when the
button is pushed and held, the selection
screen can be displayed. For details about
the selection screen, refer to “Selection
screen” F3-58.

1)
2)
3)
4)

Information bar
Outside temperature indicator
Top display
Clock

While the ignition switch is in the “ACC” or
“ON” position, the outside temperature
indicator, clock, etc. will be shown on the
information bar.
! Outside temperature indicator
This displays the outside temperature
between −408F (−408C) and 1228F
(508C).
