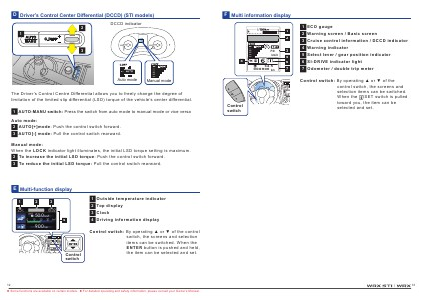

D Driver’s Control Center Differential (DCCD) (STI models)
DCCD indicator

2

1

3

Auto mode

Manual mode

The Driver’s Control Centre Differential allows you to freely change the degree of
limitation of the limited slip differential (LSD) torque of the vehicle’s center differential.
1 AUTO-MANU switch: Press the switch from auto mode to manual mode or vice versa
Auto mode:
2 AUTO[+]mode: Push the control switch forward.
3 AUTO[-] mode: Pull the control switch rearward.
Manual mode:
When the LOCK indicator light illuminates, the initial LSD torque setting is maximum.
2 To increase the initial LSD torque: Push the control switch forward.
3 To reduce the initial LSD torque: Pull the control switch rearward.

E Multi-function display
1

2

1 Outside temperature indicator

3

2 Top display
3 Clock
4

Control
switch

4 Driving information display
Control switch: By operating ▲ or ▼ of the control
switch, the screens and selection
items can be switched. When the
ENTER button is pushed and held,
the item can be selected and set.

12

◆ Some functions are available on certain models. ◆ For detailed operating and safety information, please consult your Owner’s Manual.
