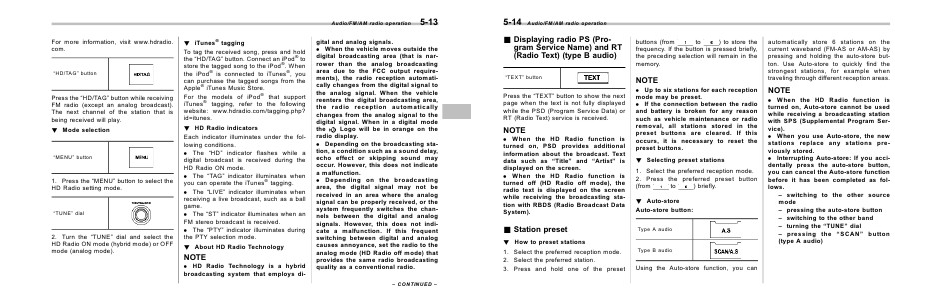

Subaru WRX & WRX STI Manuals 2015 WRX & WRX STI Owner's Manual | Page 267

5-14

Audio/FM/AM radio operation

& Displaying radio PS (Program Service Name) and RT
(Radio Text) (type B audio)
“TEXT” button

Press the “TEXT” button to show the next
page when the text is not fully displayed
while the PSD (Program Service Data) or
RT (Radio Text) service is received.

NOTE
. When the HD Radio function is
turned on, PSD provides additional
information about the broadcast. Text
data such as “Title” and “Artist” is
displayed on the screen.
. When the HD Radio function is
turned off (HD Radio off mode), the
radio text is displayed on the screen
while receiving the broadcasting station with RBDS (Radio Broadcast Data
System).

& Station preset

buttons (from
to
) to store the
frequency. If the button is pressed briefly,
the preceding selection will remain in the
memory.

NOTE
. Up to six stations for each reception
mode may be preset.
. If the connection between the radio
and battery is broken for any reason
such as vehicle maintenance or radio
removal, all stations stored in the
preset buttons are cleared. If this
occurs, it is necessary to reset the
preset buttons.
! Selecting preset stations
1. Select the preferred reception mode.
2. Press the preferred preset button
to
) briefly.
(from
! Auto-store
Auto-store button:
Type A audio

! How to preset stations
1. Select the preferred reception mode.
2. Select the preferred station.
3. Press and hold one of the preset

Type B audio

Using the Auto-store function, you can

automatically store 6 stations on the
current waveband (FM-AS or AM-AS) by
pressing and holding the auto-store button. Use Auto-store to quickly find the
strongest stations, for example when
traveling through different reception areas.

NOTE
. When the HD Radio function is
turned on, Auto-store cannot be used
while receiving a broadcasting station
with SPS (Supplemental Program Service).
. When you use Auto-store, the new
stations replace any stations previously stored.
. Interrupting Auto-store: If you accidentally press the auto-store button,
you can cancel the Auto-store function
before it has been completed as follows.
– switching to the other source
mode
– pressing the auto-store button
– switching to the other band
– turning the “TUNE” dial
– pressing the “SCAN” button
(type A audio)
