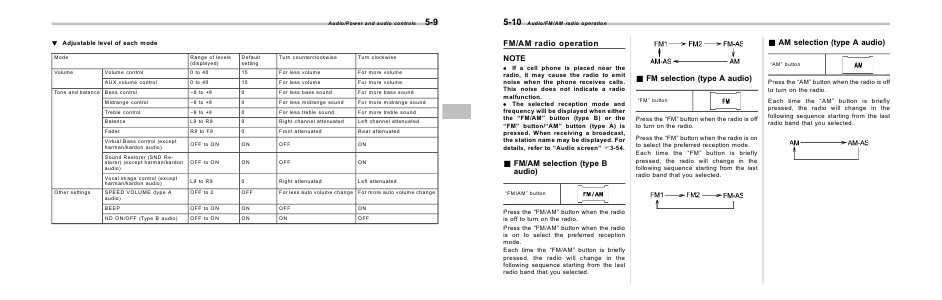

5-10

Audio/FM/AM radio operation

& AM selection (type A audio)

FM/AM radio operation
NOTE
. If a cell phone is placed near the
radio, it may cause the radio to emit
noise when the phone receives calls.
This noise does not indicate a radio
malfunction.
. The selected reception mode and
frequency will be displayed when either
the “FM/AM” button (type B) or the
“FM” button/“AM” button (type A) is
pressed. When receiving a broadcast,
the station name may be displayed. For
details, refer to “Audio screen” F3-54.

& FM/AM selection (type B
audio)
“FM/AM” button

Press the “FM/AM” button when the radio
is off to turn on the radio.
Press the “FM/AM” button when the radio
is on to select the preferred reception
mode.
Each time the “FM/AM” button is briefly
pressed, the radio will change in the
following sequence starting from the last
radio band that you selected.

“AM” button

& FM selection (type A audio)
“FM” button

Press the “FM” button when the radio is off
to turn on the radio.
Press the “FM” button when the radio is on
to select the preferred reception mode.
Each time the “FM” button is briefly
pressed, the radio will change in the
following sequence starting from the last
radio band that you selected.

Press the “AM” button when the radio is off
to turn on the radio.
Each time the “AM” button is briefly
pressed, the radio will change in the
following sequence starting from the last
radio band that you selected.
