4-12

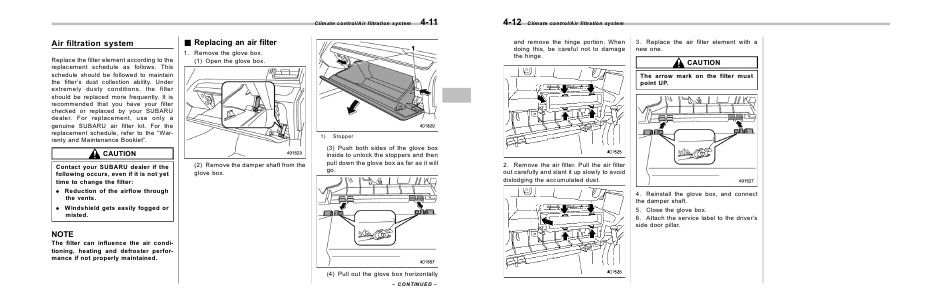

Climate control/Air filtration system

and remove the hinge portion. When
doing this, be careful not to damage
the hinge.

3. Replace the air filter element with a
new one.

CAUTION
The arrow mark on the filter must
point UP.

2. Remove the air filter. Pull the air filter
out carefully and slant it up slowly to avoid
dislodging the accumulated dust.
4. Reinstall the glove box, and connect
the damper shaft.
5. Close the glove box.
6. Attach the service label to the driver’s
side door pillar.
