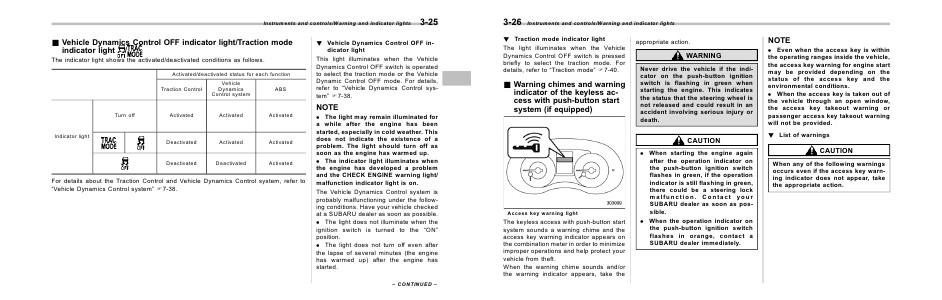

Instruments and controls/Warning and indicator lights

& Vehicle Dynamics Control OFF indicator light/Traction mode
indicator light /
The indicator light shows the activated/deactivated conditions as follows.
Activated/deactivated status for each function
Traction Control

Vehicle
Dynamics
Control system

ABS

Activated

Activated

Activated

Deactivated

Activated

Activated

Deactivated

Deactivated

Activated

3-25

! Vehicle Dynamics Control OFF indicator light
This light illuminates when the Vehicle
Dynamics Control OFF switch is operated
to select the traction mode or the Vehicle
Dynamic Control OFF mode. For details,
refer to “Vehicle Dynamics Control system” F7-38.

NOTE
Turn off

Indicator light

For details about the Traction Control and Vehicle Dynamics Control system, refer to
“Vehicle Dynamics Control system” F7-38.

. The light may remain illuminated for
a while after the engine has been
started, especially in cold weather. This
does not indicate the existence of a
problem. The light should turn off as
soon as the engine has warmed up.
. The indicator light illuminates when
the engine has developed a problem
and the CHECK ENGINE warning light/
malfunction indicator light is on.
The Vehicle Dynamics Control system is
probably malfunctioning under the following conditions. Have your vehicle checked
at a SUBARU dealer as soon as possible.
. The light does not illuminate when the
ignition switch is turned to the “ON”
position.
. The light does not turn off even after
the lapse of several minutes (the engine
has warmed up) after the engine has
started.
– CONTINUED –
