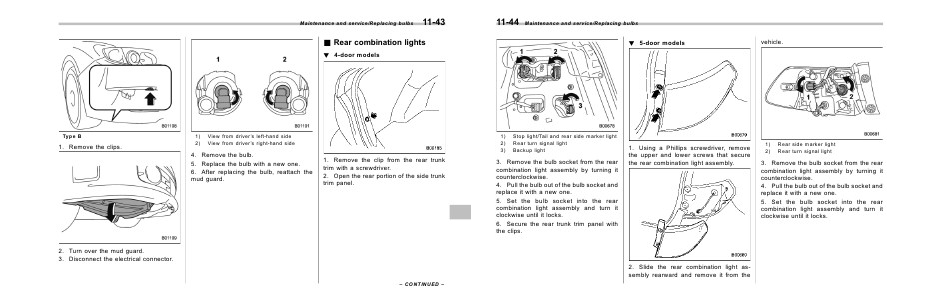

Subaru WRX & WRX STI Manuals 2014 Impreza WRX & WRX STI Owner's Manual | Page 364

Maintenance and service/Replacing bulbs

11-43

& Rear combination lights
! 4-door models

Type B

1. Remove the clips.

1)
2)

View from driver’s left-hand side
View from driver’s right-hand side

4. Remove the bulb.
5. Replace the bulb with a new one.
6. After replacing the bulb, reattach the
mud guard.

1. Remove the clip from the rear trunk
trim with a screwdriver.
2. Open the rear portion of the side trunk
trim panel.

2. Turn over the mud guard.
3. Disconnect the electrical connector.

– CONTINUED –
