Maintenance and service/Replacing bulbs

11-41

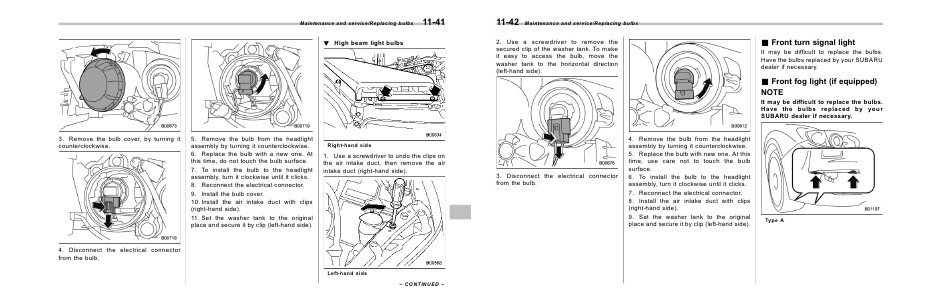

! High beam light bulbs

3. Remove the bulb cover, by turning it
counterclockwise.

5. Remove the bulb from the headlight
assembly by turning it counterclockwise.
6. Replace the bulb with a new one. At
this time, do not touch the bulb surface.
7. To install the bulb to the headlight
assembly, turn it clockwise until it clicks.
8. Reconnect the electrical connector.
9. Install the bulb cover.
10. Install the air intake duct with clips
(right-hand side).
11. Set the washer tank to the original
place and secure it by clip (left-hand side).

Right-hand side

1. Use a screwdriver to undo the clips on
the air intake duct, then remove the air
intake duct (right-hand side).

4. Disconnect the electrical connector
from the bulb.
Left-hand side
– CONTINUED –
