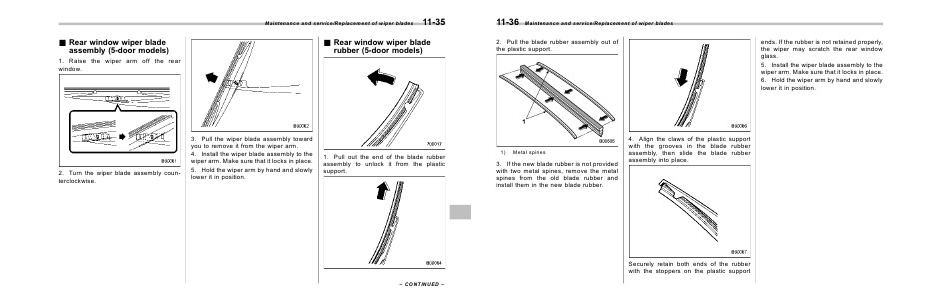

11-36

Maintenance and service/Replacement of wiper blades

ends. If the rubber is not retained properly,
the wiper may scratch the rear window
glass.
5. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
6. Hold the wiper arm by hand and slowly
lower it in position.

2. Pull the blade rubber assembly out of
the plastic support.

1)

Metal spines

3. If the new blade rubber is not provided
with two metal spines, remove the metal
spi
