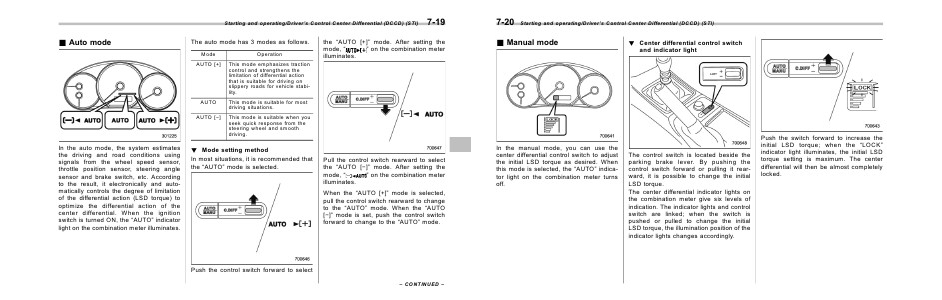

7-20

Starting and operating/Driver’s Control Center Differential (DCCD) (STI)

& Manual mode

In the manual mode, you can use the
center differential control switch to adjust
the initial LSD torque as desired. When
this mode is selected, the “AUTO” indicator light on the combination meter turns
off.

! Center differential control switch
and indicator light

The control switch is located beside the
parking brake lever. By pushing the
control switch forward or pulling it rearward, it is possible to change the initial
LSD torque.
The center differential indicator lights on
the combination meter give six levels of
indication. The indicator lights and control
switch are linked; when the switch is
pushed or pulled to change the initial
LSD torque, the illumination position of the
indicator lights changes accordingly.

Push the switch forward to increase the
initial LSD torque; when the “LOCK”
indicator light illuminates, the initial LSD
torque setting is maximum. The center
differential will then be almost completely
locked.
