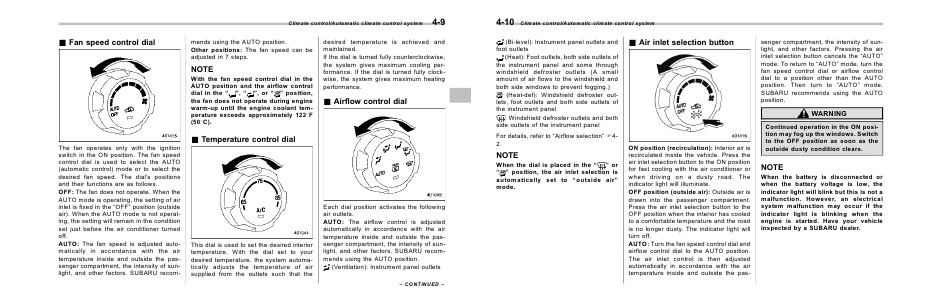

Subaru WRX & WRX STI Manuals 2014 Impreza WRX & WRX STI Owner's Manual | Page 176

Climate control/Automatic climate control system

& Fan speed control dial

mends using the AUTO position.
Other positions: The fan speed can be
adjusted in 7 steps.

NOTE
With the fan speed control dial in the
AUTO position and the airflow control
dial in the “ ”, “ ”, or “ ” position,
the fan does not operate during engine
warm-up until the engine coolant temperature exceeds approximately 1228F
(508C).

The fan operates only with the ignition
switch in the ON position. The fan speed
control dial is used to select the AUTO
(automatic control) mode or to select the
desired fan speed. The dial’s positions
and their functions are as follows.
OFF: The fan does not operate. When the
AUTO mode is operating, the setting of air
inlet is fixed in the “OFF” position (outside
air). When the AUTO mode is not operating, the setting will remain in the condition
set just before the air conditioner turned
off.
AUTO: The fan speed is adjusted automatically in accordance with the air
temperature inside and outside the passenger c
