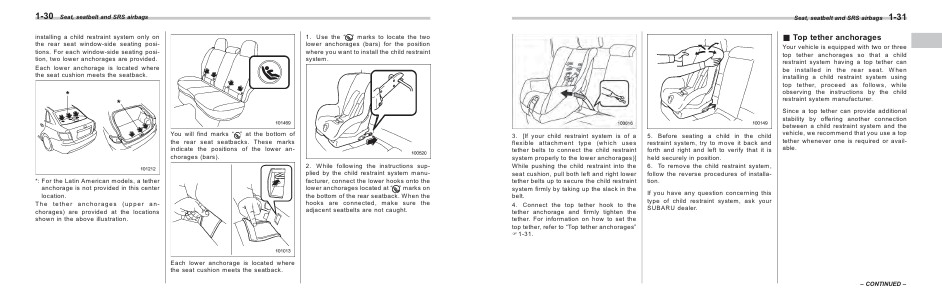

1-30

Seat, seatbelt and SRS airbags

1. Use the “ ” marks to locate the two
lower anchorages (bars) for the position
where you want to install the child restraint
system.

installing a child restraint system only on
the rear seat window-side seating positions. For each window-side seating position, two lower anchorages are provided.
Each lower anchorage is located where
the seat cushion meets the seatback.

You will find marks “ ” at the bottom of
the rear seat seatbacks. These marks
indicate the positions of the lower anchorages (bars).
2. While following the instructions supplied by the child restraint system manufacturer, connect the lower hooks onto the
lower anchorages located at “ ” marks on
the bottom of the rear seatback. When the
hooks are connected, make sure the
adjacent seatbelts are not caught.

*: For the Latin American models, a tether
anchorage is not provided in this center
location.
The tether anchorages (upper anchorages) are provided at the locations
shown in the above illustration.

Each lower anchorage is located where
the seat cushion meets the seatback.
