11-40

Maintenance and service

NOTE
. If headlight aiming is required, consult your SUBARU dealer for proper
adjustment of the headlight aim.
. It may be difficult to replace the
bulbs. Have the bulbs replaced by your
SUBARU dealer if necessary.

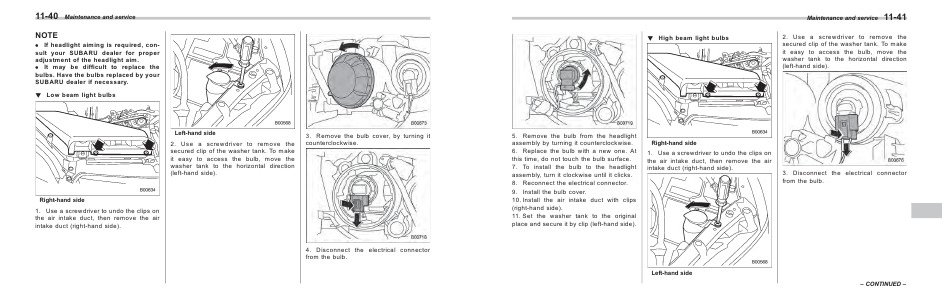

! Low beam light bulbs

Left-hand side

2. Use a screwdriver to remove the
secured clip of the washer tank. To make
it easy to access the bulb, move the
washer tank to the horizontal direction
(left-hand side).

3. Remove the bulb cover, by turning it
counterclockwise.

Right-hand side

1. Use a screwdriver to undo the clips on
the air intake duct, then remove the air
intake duct (right-hand side).
4. Disconnect the electrical connector
from the bulb.
