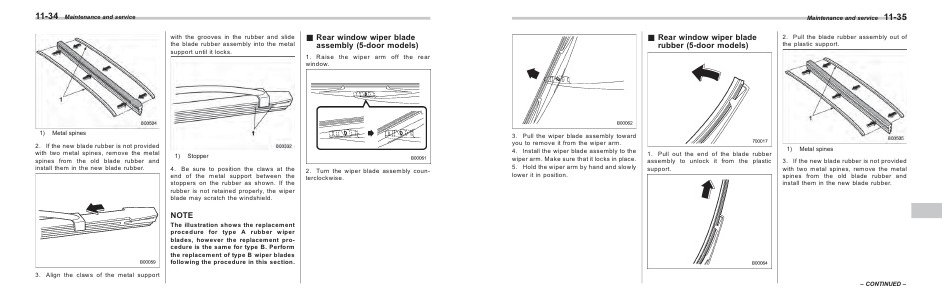

Subaru WRX & WRX STI Manuals 2013 Impreza WRX & WRX STI Owner's Manual | Page 355

Maintenance and service

& Rear window wiper blade
rubber (5-door models)

3. Pull the wiper blade assembly toward
you to remove it from the wiper arm.
4. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
5. Hold the wiper arm by hand and slowly
lower it in position.

1. Pull out the end of the blade rubber
assembly to unlock it from the plastic
support.

11-35

2. Pull the blade rubber assembly out of
the plastic support.

1)

Metal spines

3. If the new blade rubber is not provided
with two metal spines, remove the metal
spines from the old blade rubber and
install them in the new blade rubber.

– CONTINUED –
