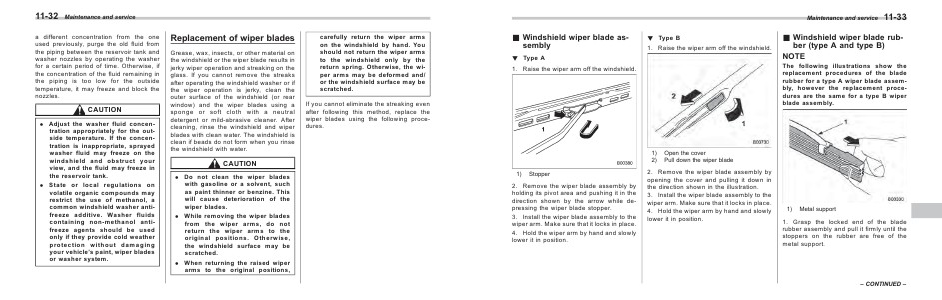

Maintenance and service

& Windshield wiper blade assembly

! Type B
1. Raise the wiper arm off the windshield.

! Type A

1)
2)
Stopper

2. Remove the wiper blade assembly by
holding its pivot area and pushing it in the
direction shown by the arrow while depressing the wiper blade stopper.
3. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
4. Hold the wiper arm by hand and slowly
lower it in position.

& Windshield wiper blade rubber (type A and type B)
NOTE
The following illustrations show the
replacement procedures of the blade
rubber for a type A wiper blade assembly, however the replacement procedures are the same for a type B wiper
blade assembly.

1. Raise the wiper arm off the windshield.

1)

11-33

Open the cover
Pull down the wiper blade

2. Remove the wiper blade assembly by
opening the cover and pulling it down in
the direction shown in the illustration.
3. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
4. Hold the wiper arm by hand and slowly
lower it in position.

1)

Metal support

1. Grasp the locked end of the blade
rubber assembly and pull it firmly until the
stoppers on the rubber are free of the
metal support.

– CONTINUED –
