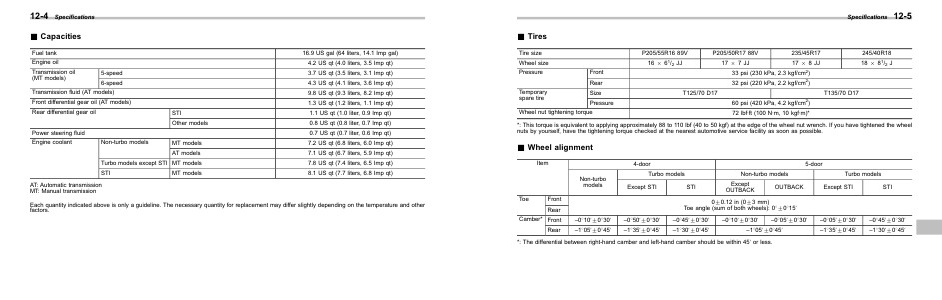

Specifications 12-5 & Tires Tire size P205/55R16 89V P205/50R17 88V 235/45R17 245/40R18 16 6 61/2 JJ Wheel size 17 6 7 JJ 17 6 8 JJ 18 6 81/2 J Front Temporary spare tire 33 psi (230 kPa, 2.3 kgf/cm2) Rear Pressure 32 psi (220 kPa, 2.2 kgf/cm2) Size T125/70 D17 T135/70 D17 60 psi (420 kPa, 4.2 kgf/cm2) Pressure Wheel nut tightening torque 72 lbf·ft (100 N·m, 10 kgf·m)* *: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the edge of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. & Wheel alignment Item 4-door Non-turbo models Toe 5-door Turbo models Except STI Front Non-turbo models STI Except OUTBACK OUTBACK Turbo models Except STI STI 0+0.12 in (0+3 mm) Toe angle (sum of both wheels): 08+0815’ Rear Camber* Front –0810’+0830’ –0850’+0830’ –0845’+0830’ Rear –1805’+0845’ –1835’+0845’ –1830’+0845’ –0810’+0830’ –0805’+0830’ –1805’+0845’ *: The differentia l between right-hand camber and left-hand camber should be within 45’ or less. –0805’+0830’ –0845’+0830’ –1835’+0845’ –1830’+0845’
