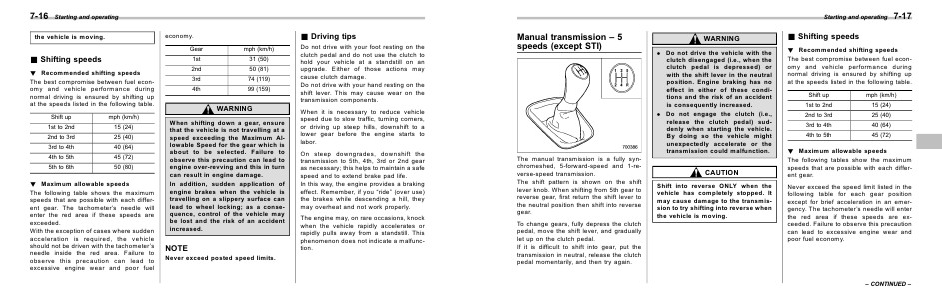

Subaru WRX & WRX STI Manuals 2011 Impreza WRX & WRX STI Owner's Manual | Page 279
Starting and operating
Manual transmission – 5
speeds (except STI)
The manual transmission is a fully synchromeshed, 5-forward-speed and 1-reverse-speed transmission.
The shift pattern is shown on the shift
lever knob. When shifting from 5th gear to
reverse gear, first return the shift lever to
the neutral position then shift into reverse
gear.
To change gears, fully depress the clutch
pedal, move the shift lever, and gradually
let up on the clutch pedal.
If it is difficult to shift into gear, put the
transmission in neutral, release the clutch
pedal momentarily, and then try again.
WARNING
. Do not drive the vehicle with the
clutch disengaged (i.e., when the
clutch pedal is depressed) or
with the shift lever in the neutral
position. Engine braking has no
effect in either of these conditions and the risk of an accident
is consequently increased.
. Do not engage the clutch (i.e.,
release the clutch pedal) suddenly when starting the vehicle.
By doing so the vehicle might
unexpectedly accelerate or the
transmission could malfunction.
CAUTION
Shift into reverse ONLY when the
vehicle has completely stopped. It
may cause damage to the transmission to try shifting into reverse when
the vehicle is moving.
7-17
& Shifting speeds
! Recommended shifting speeds
The best compromise between fuel economy and vehicle performance during
normal driving is ensured by shifting up
at the speeds listed in the following table.
Shift up
mph (km/h)
1st to 2nd
15 (24)
2nd to 3rd
25 (40)
3rd to 4th
40 (64)
4th to 5th
45 (72)
! Maximum allowable speeds
The following tables show the maximum
speeds that are possible with each different gear.
Never exceed the speed limit listed in the
following table for each gear position
except for brief acceleration in an emergency. The tachometer’s needle will enter
the red area if these speeds are exceeded. Failure to observe this precaution
can lead to excessive engine wear and
poor fuel economy.
– CONTINUED –
