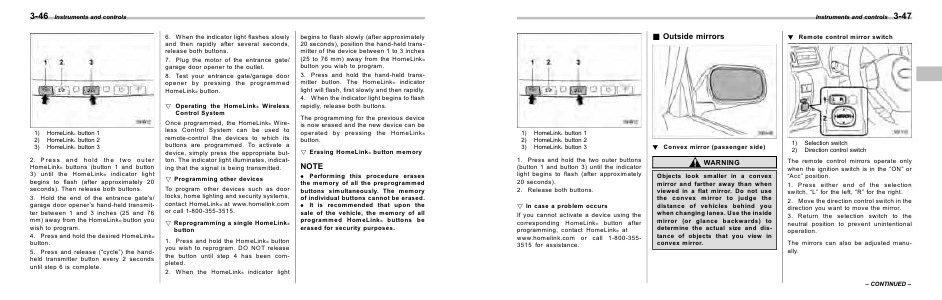

Subaru WRX & WRX STI Manuals 2011 Impreza WRX & WRX STI Owner's Manual | Page 167

Instruments and controls

& Outside mirrors

1)
2)
3)

HomeLink® button 1
HomeLink® button 2
HomeLink® button 3

1. Press and hold the two outer buttons
(button 1 and button 3) until the indicator
light begins to flash (after approximately
20 seconds).
2. Release both buttons.
! In case a problem occurs
If you cannot activate a device using the
corresponding HomeLink® button after
programming, contact HomeLink® at
www.homelink.com or call 1-800-3553515 for assistance.

! Convex mirror (passenger side)

WARNING
Objects look smaller in a convex
mirror and farther away than when
viewed in a flat mirror. Do not use
the convex mirror to judge the
distance of vehicles behind you
when changing lanes. Use the inside
mirror (or glance backwards) to
determine the actual size and distance of objects that you view in
convex mirror.

3-47

! Remote control mirror switch

1)
2)

Selection switch
Direction control switch

The remote control mirrors operate only
when the ignition switch is in the “ON” or
“Acc” position.
1. Press either end of the selection
switch, “L” for the left, “R” for the right.
2. Move the direction control switch in the
direction you want to move the mirror.
3. Return the selection switch to the
neutral position to prevent unintentional
operation.
The mirrors can also be adjusted manually.

– CONTINUED –
