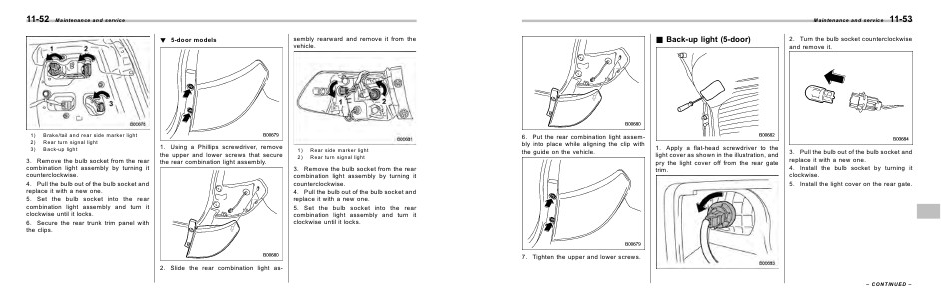

11-52

Maintenance and service

! 5-door models

1)
2)
3)

Brake/tail and rear side marker light
Rear turn signal light
Back-up light

3. Remove the bulb socket from the rear
combination light assembly by turning it
counterclockwise.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Set the bulb socket into the rear
combination light assembly and turn it
clockwise until it locks.
6. Secure the rear trunk trim panel with
the clips.

1. Using a Phillips screwdriver, remove
the upper and lower screws that secure
the rear combination light assembly.

2. Slide the rear combination light as-

sembly rearward and remove it from the
vehicle.

1)
2)

Rear side marker light
Rear turn signal light

3. Remove the bulb socket from the rear
combination light assembly by turning it
counterclockwise.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Set the bulb socket into the rear
combination light assembly and turn it
clockwise until it locks.
