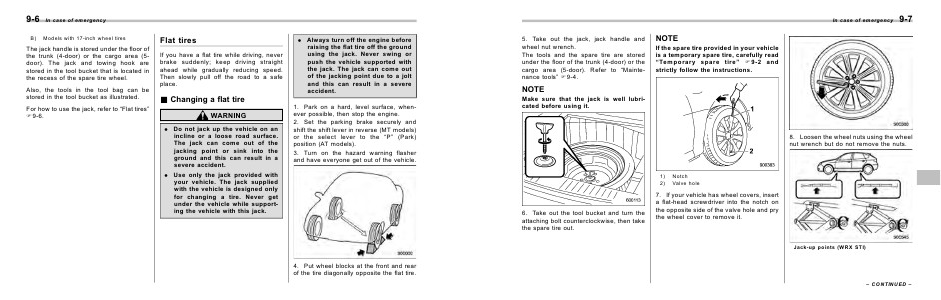

Subaru WRX & WRX STI Manuals 2010 Impreza WRX & WRX STI Owner’s Manual | Page 301

In case of emergency

5. Take out the jack, jack handle and
wheel nut wrench.
The tools and the spare tire are stored
under the floor of the trunk (4-door) or the
cargo area (5-door). Refer to “Maintenance tools” F9-4.

9-7

NOTE
If the spare tire provided in your vehicle
is a temporary spare tire, carefully read
“Temporary spare tire” F9-2 and
strictly follow the instructions.

NOTE
Make sure that the jack is well lubricated before using it.

8. Loosen the wheel nuts using the wheel
nut wrench but do not remove the nuts.

1)
2)

6. Take out the tool bucket and turn the
attaching bolt counterclockwise, then take
the spare tire out.

Notch
Valve hole

7. If your vehicle has wheel covers, insert
a flat-head screwdriver into the notch on
the opposite side of the valve hole and pry
the wheel cover to remove it.

Jack-up points (WRX STI)

– CONTINUED –
