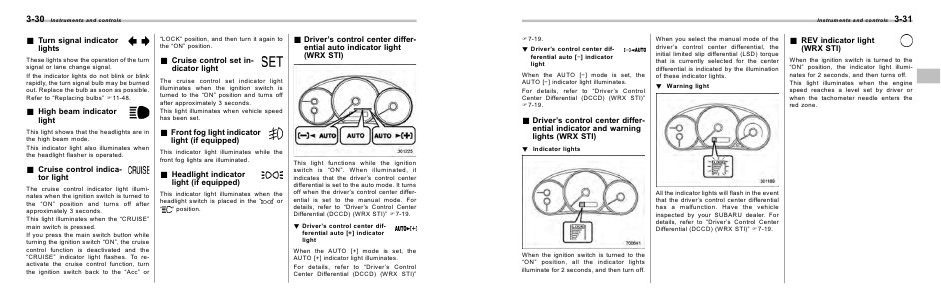

Subaru WRX & WRX STI Manuals 2010 Impreza WRX & WRX STI Owner’s Manual | Page 150
3-30
Instruments and controls
& Turn signal indicator
“LOCK” position, and then turn it again to
the “ON” position.
These lights show the operation of the turn
signal or lane change signal.
If the indicator lights do not blink or blink
rapidly, the turn signal bulb may be burned
out. Replace the bulb as soon as possible.
Refer to “Replacing bulbs” F11-48.
& Cruise control set in-
lights
& High beam indicator
light
This light shows that the headlights are in
the high beam mode.
This indicator light also illuminates when
the headlight flasher is operated.
& Cruise control indicator light
The cruise control indicator light illuminates when the ignition switch is turned to
the “ON” position and turns off after
approximately 3 seconds.
This light illuminates when the “CRUISE”
main switch is pressed.
If you press the main switch button while
turning the ignition switch “ON”, the cruise
control function is deactivated and the
“CRUISE” indicator light flashes. To reactivate the cruise control function, turn
the ignition switch back to the “Acc” or
& Driver’s control center differential auto indicator light
(WRX STI)
dicator light
The cruise control set indicator light
illuminates when the ignition switch is
turned to the “ON” position and turns off
after approximately 3 seconds.
This light illuminates when vehicle speed
has been set.
& Front fog light indicator
light (if equipped)
This indicator light illuminates while the
front fog lights are illuminated.
& Headlight indicator
light (if equipped)
This indicator light illuminates when the
headlight switch is placed in the “
” or
“ ” position.
This light functions while the ignition
switch is “ON”. When illuminated, it
indicates that the driver’s control cen FW
