188
Center Information Display( CID)
& Basic Screens

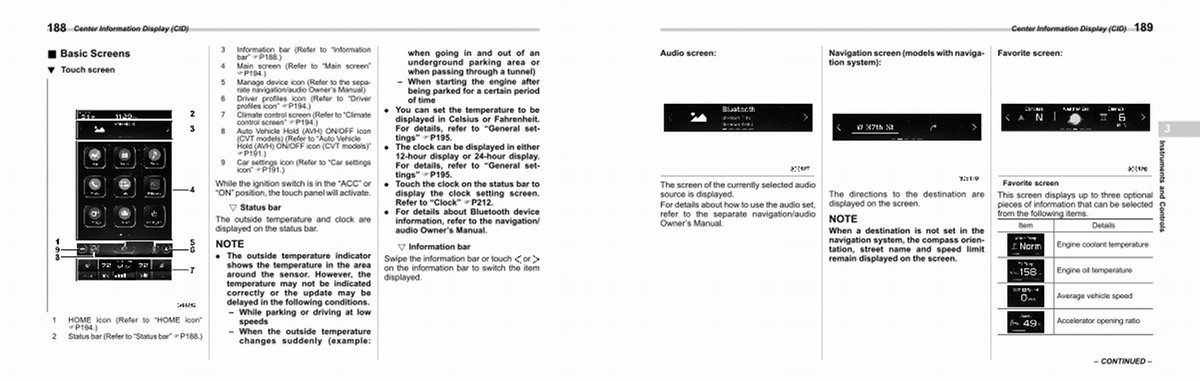

! Touch screen s03bs05
s03bs0501
1 HOME icon( Refer to“ HOME icon” FP194.)
2 Status bar( Refer to“ Status bar” FP188.)
3 Information bar( Refer to“ Information bar” FP188.)
4 Main screen( Refer to“ Main screen” FP194.)
5 Manage device icon( Refer to the separate navigation / audio Owner’ s Manual)
6 Driver profiles icon( Refer to“ Driver profiles icon” FP194.)
7 Climate control screen( Refer to“ Climate control screen” FP194.)
8 Auto Vehicle Hold( AVH) ON / OFF icon( CVT models)( Refer to“ Auto Vehicle Hold( AVH) ON / OFF icon( CVT models)” FP191.)
9 Car settings icon( Refer to“ Car settings icon” FP191.)
While the ignition switch is in the“ ACC” or“ ON” position, the touch panel will activate.
! Status bar s03bs050101
The outside temperature and clock are displayed on the status bar.
NOTE
. The outside temperature indicator shows the temperature in the area around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions. – While parking or driving at low speeds – When the outside temperature changes suddenly( example: when going in and out of an underground parking area or when passing through a tunnel)
– When starting the engine after being parked for a certain period of time
. You can set the temperature to be displayed in Celsius or Fahrenheit. For details, refer to“ General settings” FP195.
. The clock can be displayed in either 12-hour display or 24-hour display. For details, refer to“ General settings” FP195.
. Touch the clock on the status bar to display the clock setting screen. Refer to“ Clock” FP212.
. For details about Bluetooth device information, refer to the navigation / audio Owner’ s Manual.
! Information bar s03bs050102
Swipe the information bar or touch or on the information bar to switch the item displayed.
