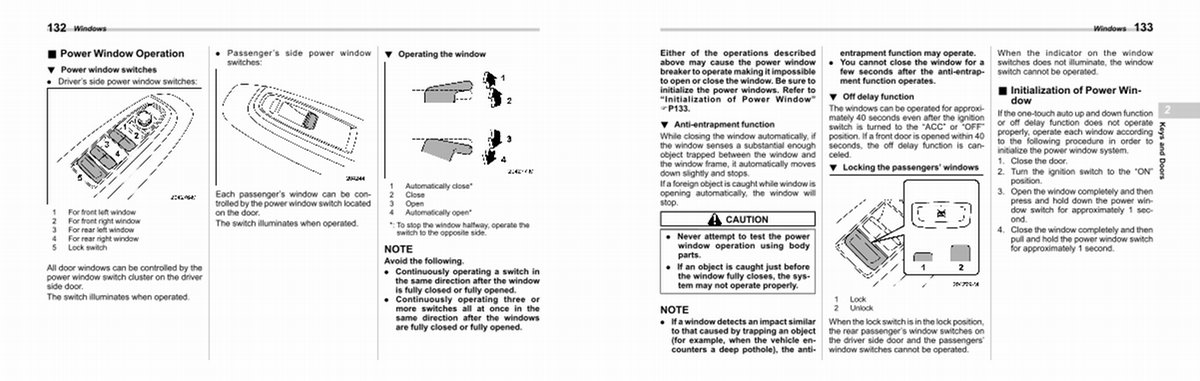

132
Windows
|
& Power Window Operation s02ah07
! Power window switches s02ah0701
. Driver’ s side power window switches:
|
|
|
|
. Passenger’ s side power window switches: |
! Operating the window |
s02ah0702 |
1 For front left window 2 For front right window 3 For rear left window 4 For rear right window 5 Lock switch
All door windows can be controlled by the power window switch cluster on the driver side door.
The switch illuminates when operated.
Each passenger’ s window can be controlled by the power window switch located on the door.
The switch illuminates when operated.
1 Automatically close * 2 Close 3 Open 4 Automatically open *
*: To stop the window halfway, operate the switch to the opposite side.
NOTE
Avoid the following.
. Continuously operating a switch in the same direction after the window is fully closed or fully opened.
. Continuously operating three or more switches all at once in the same direction after the windows are fully closed or fully opened.
