BASIC INFORMATION BEFORE OPERATION

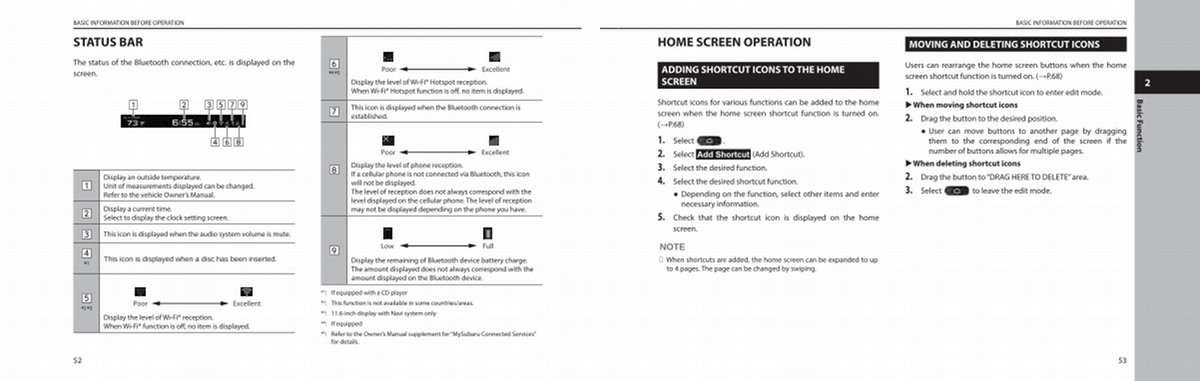

STATUS BAR
The status of the Bluetooth connection, etc. is displayed on the screen.
* 4 * 5 Poor Excellent Display the level of Wi-Fi ® Hotspot reception. When Wi-Fi ® Hotspot function is off, no item is displayed.
This icon is displayed when the Bluetooth connection is established.
Display an outside temperature. Unit of measurements displayed can be changed. Refer to the vehicle Owner’ s Manual.
Display a current time. Select to display the clock setting screen.
This icon is displayed when the audio system volume is mute.
* 1 This icon is displayed when a disc has been inserted.
* 2 * 3 |
Poor |
Excellent |
|
Display the level of Wi-Fi ® reception. |
|
When Wi-Fi ® function is off, no item is displayed. |
Poor Excellent
Display the level of phone reception. If a cellular phone is not connected via Bluetooth, this icon will not be displayed. The level of reception does not always correspond with the level displayed on the cellular phone. The level of reception may not be displayed depending on the phone you have.
Low Full
Display the remaining of Bluetooth device battery charge. The amount displayed does not always correspond with the amount displayed on the Bluetooth device.
* 1: If equipped with a CD player * 2: This function is not available in some countries / areas. * 3: 11.6-inch display with Navi system only * 4: If equipped
* 5: Refer to the Owner’ s Manual supplement for“ MySubaru Connected Services” for details.
