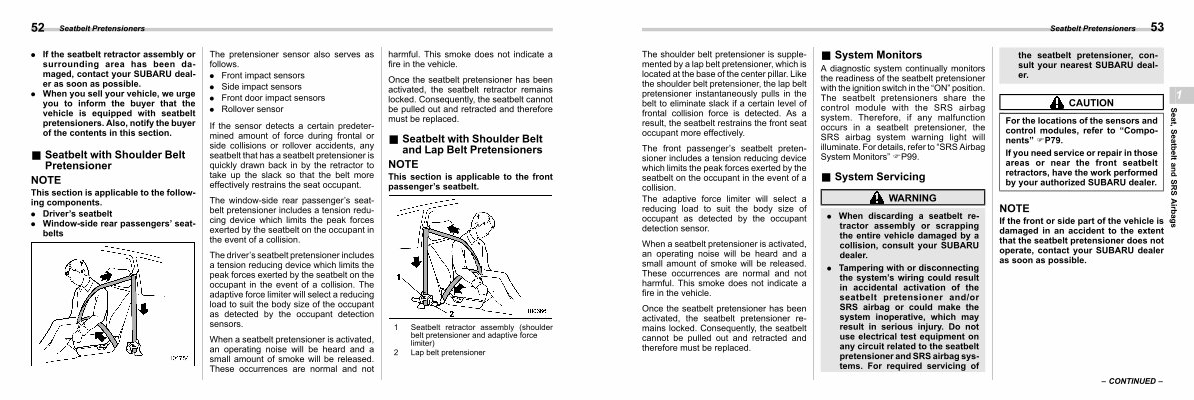

Seatbelt Pretensioners 53 |
||||||
|
The shoulder belt pretensioner is supplemented by a lap belt pretensioner , which is located at the base of the center pillar . Like the shoulder belt pretensioner , the lap belt pretensioner instantaneously pulls in the belt to eliminate slack if a certain level of frontal collision force is detected . As a result , the seatbelt restrains the front seat occupant more effectively .
The front passenger ’ s seatbelt pretensioner includes a tension reducing device which limits the peak forces exerted by the seatbelt on the occupant in the event of a collision .
The adaptive force limiter will select a reducing load to suit the body size of occupant as detected by the occupant detection sensor .
When a seatbelt pretensioner is activated , an operating noise will be heard and a small amount of smoke will be released . These occurrences are normal and not harmful . This smoke does not indicate a fire in the vehicle .
Once the seatbelt pretensioner has been activated , the seatbelt pretensioner remains locked . Consequently , the seatbelt cannot be pulled out and retracted and therefore must be replaced .
|
& System Monitors s01af03
A diagnostic system continually monitors the readiness of the seatbelt pretensioner with the ignition switch in the “ ON ” position . The seatbelt pretensioners share the control module with the SRS airbag system . Therefore , if any malfunction occurs in a seatbelt pretensioner , the SRS airbag system warning light will illuminate . For details , refer to “ SRS Airbag System Monitors ” FP99 .
& System Servicing
|
WARNING
s01af04
. When discarding a seatbelt retractor assembly or scrapping the entire vehicle damaged by a collision , consult your SUBARU dealer .
. Tampering with or disconnecting the system ’ s wiring could result in accidental activation of the seatbelt pretensioner and / or SRS airbag or could make the system inoperative , which may result in serious injury . Do not use electrical test equipment on any circuit related to the seatbelt pretensioner and SRS airbag systems . For required servicing of
|
the seatbelt pretensioner , consult your nearest SUBARU dealer .
CAUTION
For the locations of the sensors and control modules , refer to “ Components ” FP79 .
If you need service or repair in those areas or near the front seatbelt retractors , have the work performed by your authorized SUBARU dealer .
NOTE
If the front or side part of the vehicle is damaged in an accident to the extent that the seatbelt pretensioner does not operate , contact your SUBARU dealer as soon as possible .
|
1
Seat , Seatbelt and SRS Airbags
|
||
– CONTINUED – |
