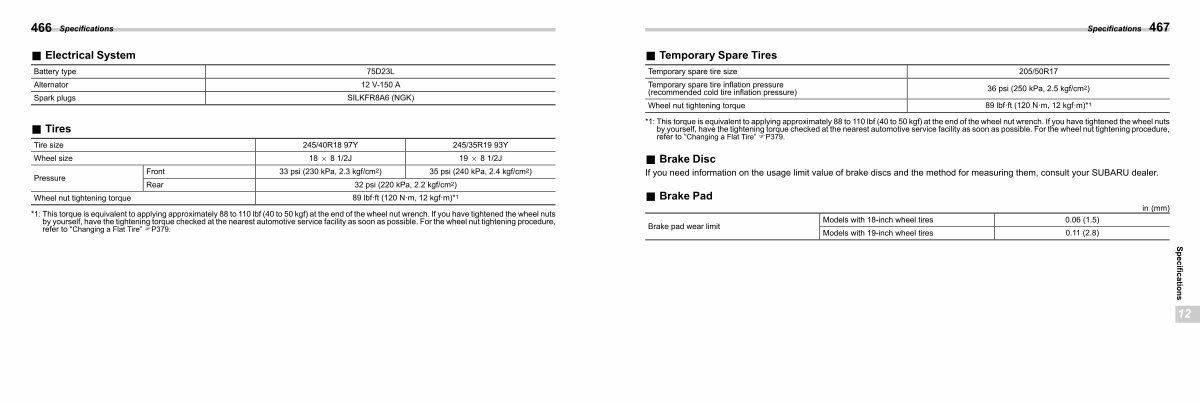

Specifications 467
& Temporary Spare Tires s12aa15
Temporary spare tire size |
205 / 50R17 |
|
Temporary spare tire inflation pressure
( recommended cold tire inflation pressure)
|
36 psi( 250 kPa, 2.5 kgf / cm 2) |
Wheel nut tightening torque |
89 lbf · ft( 120 N · m, 12 kgf · m)* 1 |
* 1: This torque is equivalent to applying approximately 88 to 110 lbf( 40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure, refer to“ Changing a Flat Tire” FP379.
& Brake Disc s12aa18
If you need information on the usage limit value of brake discs and the method for measuring them, consult your SUBARU dealer.
|
& Brake Pad
Brake pad wear limit
|
s12aa28 |
Models with 18-inch wheel tires |
0.06( 1.5) |
Models with 19-inch wheel tires |
0.11( 2.8) |
|
in( mm) |
Specifications
12
