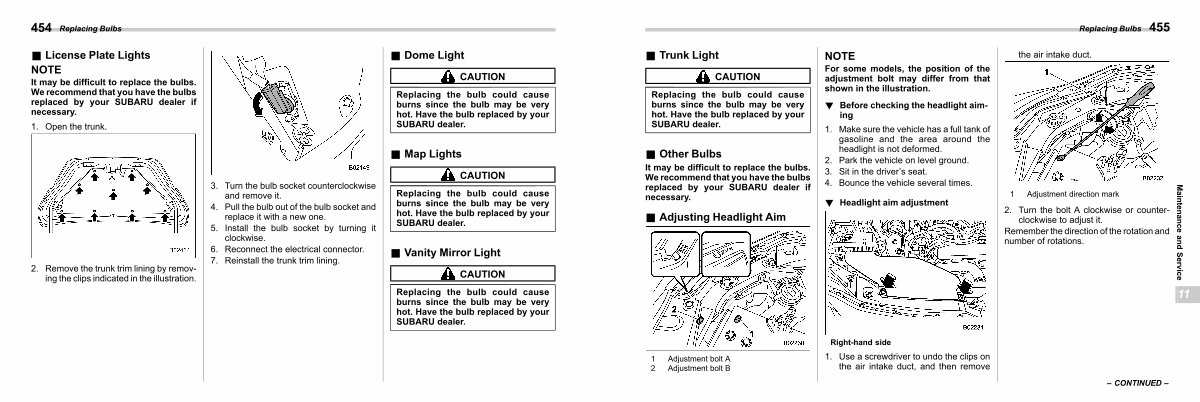

Replacing Bulbs 455 |
|||||||
|
& Trunk Light
CAUTION
s11be12
Replacing the bulb could cause burns since the bulb may be very hot. Have the bulb replaced by your SUBARU dealer.
& Other Bulbs s11be29
It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary.
& Adjusting Headlight Aim
s11be57
|
NOTE
For some models, the position of the adjustment bolt may differ from that shown in the illustration.
! Before checking the headlight aiming s11be5701
1. Make sure the vehicle has a full tank of gasoline and the area around the headlight is not deformed.
2. Park the vehicle on level ground. 3. Sit in the driver’ s seat. 4. Bounce the vehicle several times.
! Headlight aim adjustment
s11be5702
|
the air intake duct. |
1 Adjustment direction mark
2. Turn the bolt A clockwise or counterclockwise to adjust it.
Remember the direction of the rotation and number of rotations.
|
Maintenance and Service |
|||
11 |
|||||||
Right-hand side |
|||||||
1 Adjustment bolt A 2 Adjustment bolt B |
1. Use a screwdriver to undo the clips on the air intake duct, and then remove |
||||||
– CONTINUED – |
