432
Clutch Fluid( MT Models)

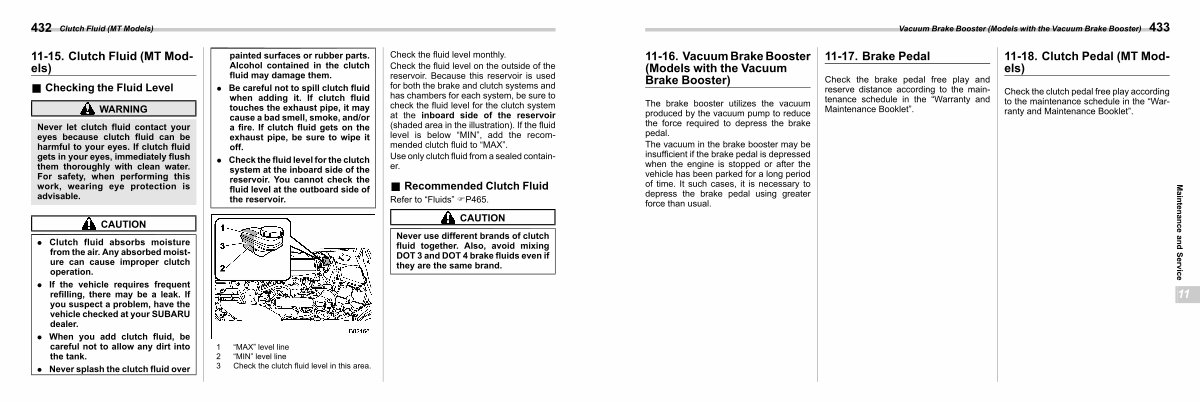

11-15. Clutch Fluid( MT Models)
& Checking the Fluid Level WARNING s11ap
s11ap01
Never let clutch fluid contact your eyes because clutch fluid can be harmful to your eyes. If clutch fluid gets in your eyes, immediately flush them thoroughly with clean water. For safety, when performing this work, wearing eye protection is advisable.
CAUTION
. Clutch fluid absorbs moisture from the air. Any absorbed moisture can cause improper clutch operation.
. If the vehicle requires frequent refilling, there may be a leak. If you suspect a problem, have the vehicle checked at your SUBARU dealer.
. When you add clutch fluid, be careful not to allow any dirt into the tank.
. Never splash the clutch fluid over
painted surfaces or rubber parts. Alcohol contained in the clutch fluid may damage them.
. Be careful not to spill clutch fluid when adding it. If clutch fluid touches the exhaust pipe, it may cause a bad smell, smoke, and / or a fire. If clutch fluid gets on the exhaust pipe, be sure to wipe it off.
. Check the fluid level for the clutch system at the inboard side of the reservoir. You cannot check the fluid level at the outboard side of the reservoir.
1“ MAX” level line 2“ MIN” level line 3 Check the clutch fluid level in this area.
Check the fluid level monthly.
Check the fluid level on the outside of the reservoir. Because this reservoir is used for both the brake and clutch systems and has chambers for each system, be sure to check the fluid level for the clutch system at the inboard side of the reservoir( shaded area in the illustration). If the fluid level is below“ MIN”, add the recommended clutch fluid to“ MAX”.
Use only clutch fluid from a sealed container.
& Recommended Clutch Fluid s11ap02
Refer to“ Fluids” FP465. CAUTION
Never use different brands of clutch fluid together. Also, avoid mixing DOT 3 and DOT 4 brake fluids even if they are the same brand.
