. On a road with extremely narrow lanes, the system may detect vehicles driving in a lane next to the neighboring lane. |
! BSD / RCTA approach indicator light s07bm0301 |
|||||||
|
& BSD / RCTA Approach Indicator Light / Warning Buzzer s07bm03
While the BSD / RCTA is active, the following item( s) will operate to alert the driver:
. The BSD / RCTA approach indicator light( when there are vehicles in the neighboring lanes)
. The BSD / RCTA approach indicator light and warning buzzer( when a vehicle is approaching from the left or right side while your vehicle is reversing)
|

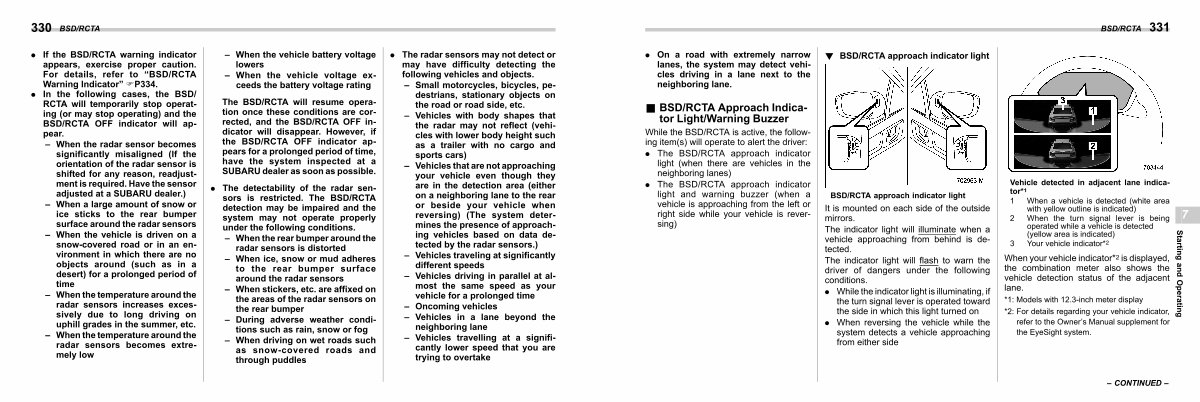

BSD / RCTA approach indicator light
It is mounted on each side of the outside mirrors.
The indicator light will illuminate when a vehicle approaching from behind is detected.
The indicator light will flash to warn the driver of dangers under the following conditions.
. While the indicator light is illuminating, if the turn signal lever is operated toward the side in which this light turned on
. When reversing the vehicle while the system detects a vehicle approaching from either side
|
Vehicle detected in adjacent lane indicator * 1
1 When a vehicle is detected( white area with yellow outline is indicated)
2 When the turn signal lever is being operated while a vehicle is detected( yellow area is indicated)
3 Your vehicle indicator * 2
When your vehicle indicator * 2 is displayed, the combination meter also shows the vehicle detection status of the adjacent lane.
* 1: Models with 12.3-inch meter display
* 2: For details regarding your vehicle indicator, refer to the Owner’ s Manual supplement for the EyeSight system.
|
7
Starting and Operating
|
|||||
– CONTINUED – |
