Combination Meter 25

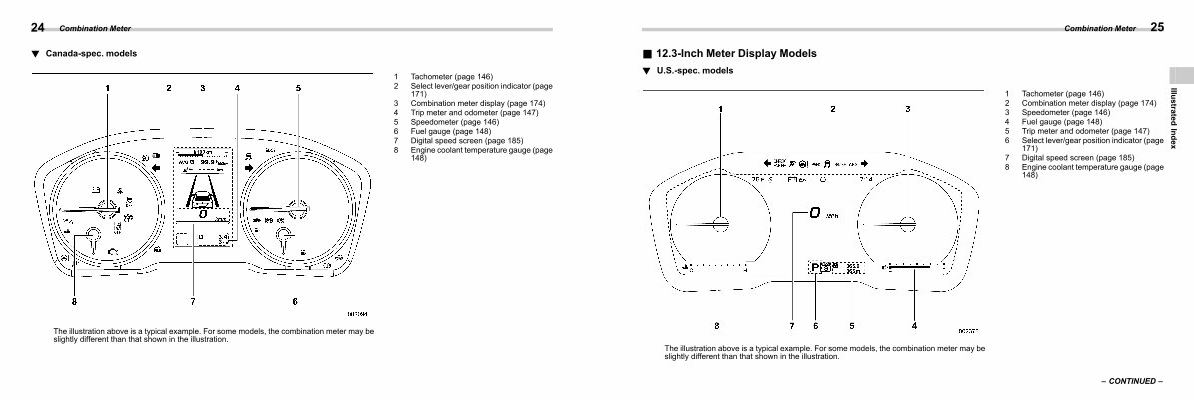

& 12.3-Inch Meter Display Models s00bd05
! U . S . -spec . models s00bd0501
1
1 Tachometer ( page 146 ) 2 Combination meter display ( page 174 ) 3 Speedometer ( page 146 ) 4 Fuel gauge ( page 148 ) 5 Trip meter and odometer ( page 147 )
6 Select lever / gear position indicator ( page 171 )
7 Digital speed screen ( page 185 ) 8 Engine coolant temperature gauge ( page
148 )
Illustrated Index
The illustration above is a typical example . For some models , the combination meter may be slightly different than that shown in the illustration .
– CONTINUED –
