Combination Meter 23
Combination Meter s00bd

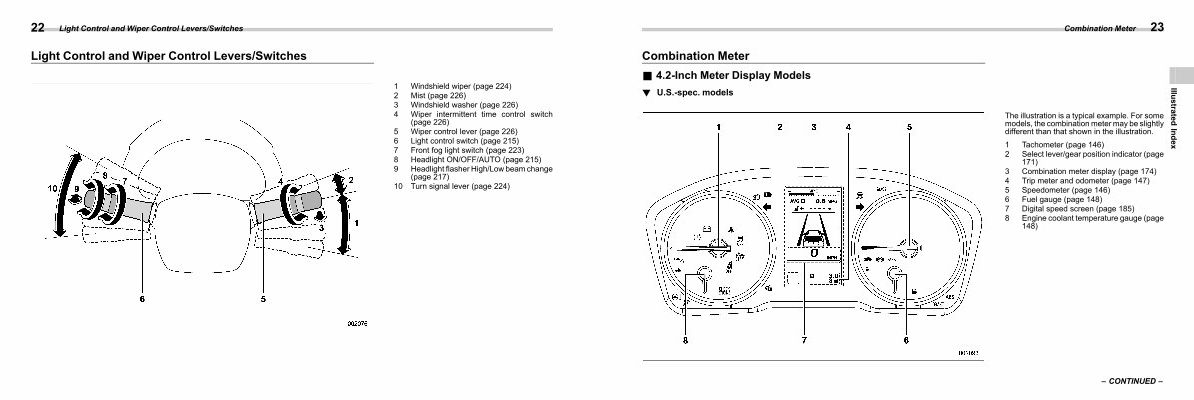

& 4.2-Inch Meter Display Models s00bd04
! U. S.-spec. models s00bd0401
The illustration is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.
1 Tachometer( page 146) 2 Select lever / gear position indicator( page
171)
3 Combination meter display( page 174) 4 Trip meter and odometer( page 147) 5 Speedometer( page 146) 6 Fuel gauge( page 148) 7 Digital speed screen( page 185)
8 Engine coolant temperature gauge( page 148)
