4 |
||||||||

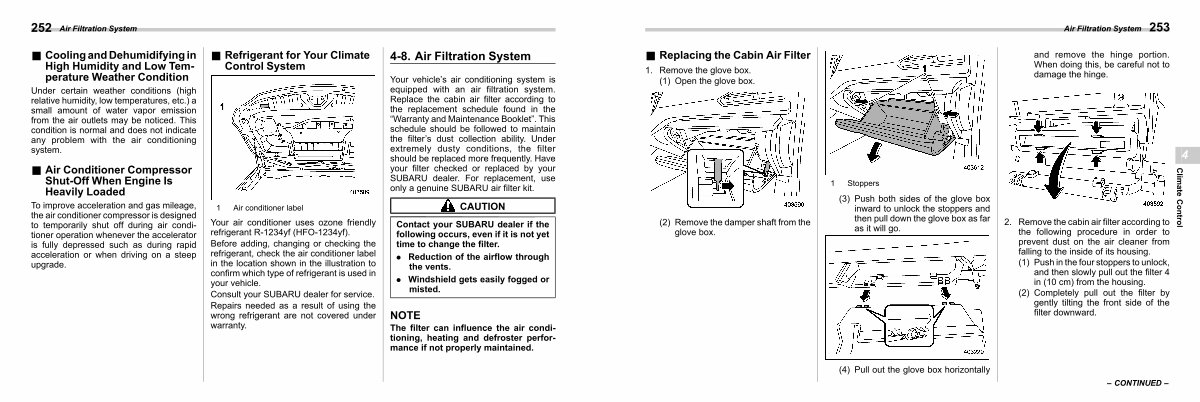

( 2) Remove the damper shaft from the glove box. |
1 Stoppers
( 3) Push both sides of the glove box inward to unlock the stoppers and then pull down the glove box as far as it will go.
|
2. Remove the cabin air filter according to the following procedure in order to prevent dust on the air cleaner from falling to the inside of its housing.( 1) Push in the four stoppers to unlock, and then slowly pull out the filter 4 in( 10 cm) from the housing.
( 2) Completely pull out the filter by gently tilting the front side of the filter downward.
|
Climate Control |
|||||
( 4) Pull out the glove box horizontally |
||||||||
– CONTINUED – |
