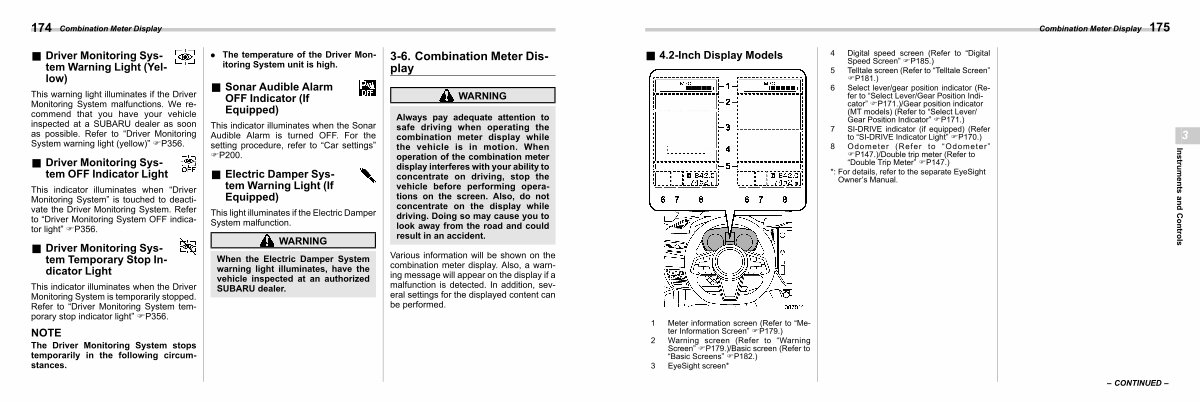

174
Combination Meter Display
& Driver Monitoring System Warning Light( Yellow) s03aeb6
This warning light illuminates if the Driver Monitoring System malfunctions. We recommend that you have your vehicle inspected at a SUBARU dealer as soon as possible. Refer to“ Driver Monitoring System warning light( yellow)” FP356.
& Driver Monitoring System OFF Indicator Light s03aea5
This indicator illuminates when“ Driver Monitoring System” is touched to deactivate the Driver Monitoring System. Refer to“ Driver Monitoring System OFF indicator light” FP356.
& Driver Monitoring System Temporary Stop Indicator Light s03aea6
This indicator illuminates when the Driver Monitoring System is temporarily stopped. Refer to“ Driver Monitoring System temporary stop indicator light” FP356.
NOTE
The Driver Monitoring System stops temporarily in the following circumstances.
. The temperature of the Driver Monitoring System unit is high.
& Sonar Audible Alarm OFF Indicator( If Equipped) s03ae93
This indicator illuminates when the Sonar Audible Alarm is turned OFF. For the setting procedure, refer to“ Car settings” FP200.
& Electric Damper System Warning Light( If Equipped) s03aeb8
This light illuminates if the Electric Damper System malfunction.
WARNING
When the Electric Damper System warning light illuminates, have the vehicle inspected at an authorized SUBARU dealer.
3-6. Combination Meter Display
WARNING s03bn
Always pay adequate attention to safe driving when operating the combination meter display while the vehicle is in motion. When operation of the combination meter display interferes with your ability to concentrate on driving, stop the vehicle before performing operations on the screen. Also, do not concentrate on the display while driving. Doing so may cause you to look away from the road and could result in an accident.
Various information will be shown on the combination meter display. Also, a warning message will appear on the display if a malfunction is detected. In addition, several settings for the displayed content can be performed.
