Warning and Indicator Lights 151 |
||||||
|
for repair.

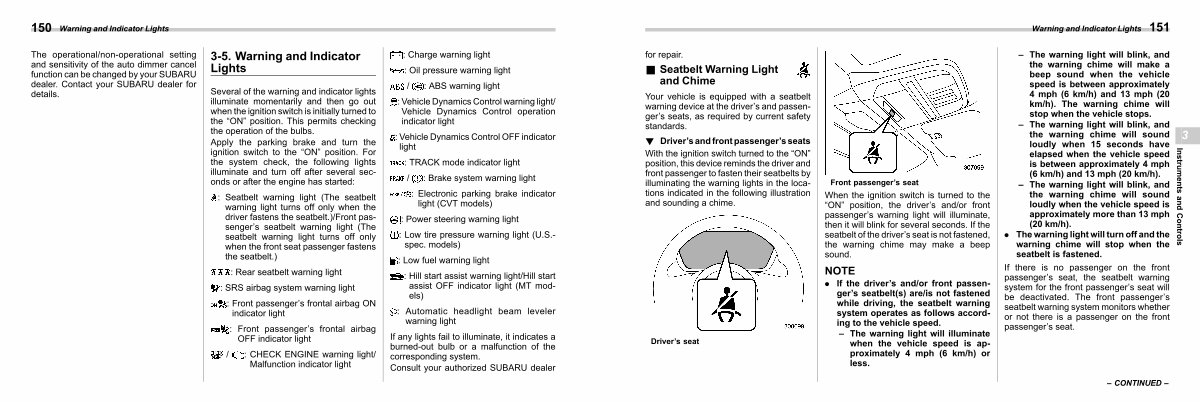

& Seatbelt Warning Light and Chime s03ae01
Your vehicle is equipped with a seatbelt warning device at the driver’ s and passenger’ s seats, as required by current safety standards.
! Driver’ s and front passenger’ s seats s03ae0114
With the ignition switch turned to the“ ON” position, this device reminds the driver and front passenger to fasten their seatbelts by illuminating the warning lights in the locations indicated in the following illustration and sounding a chime.
|
Front passenger’ s seat
When the ignition switch is turned to the“ ON” position, the driver’ s and / or front passenger’ s warning light will illuminate, then it will blink for several seconds. If the seatbelt of the driver’ s seat is not fastened, the warning chime may make a beep sound.
NOTE
. If the driver’ s and / or front passenger’ s seatbelt( s) are / is not fastened while driving, the seatbelt warning system operates as follows according to the vehicle speed. – The warning light will illuminate when the vehicle speed is approximately 4 mph( 6 km / h) or less.
|
– The warning light will blink, and the warning chime will make a beep sound when the vehicle speed is between approximately 4 mph( 6 km / h) and 13 mph( 20 km / h). The warning chime will stop when the vehicle stops.
– The warning light will blink, and the warning chime will sound loudly when 15 seconds have elapsed when the vehicle speed is between approximately 4 mph( 6 km / h) and 13 mph( 20 km / h).
– The warning light will blink, and the warning chime will sound loudly when the vehicle speed is approximately more than 13 mph( 20 km / h).
. The warning light will turn off and the warning chime will stop when the seatbelt is fastened.
If there is no passenger on the front passenger’ s seat, the seatbelt warning system for the front passenger’ s seat will be deactivated. The front passenger’ s seatbelt warning system monitors whether or not there is a passenger on the front passenger’ s seat.
|
3
Instruments and Controls
|
|||
Driver’ s seat |
||||||
– CONTINUED – |
