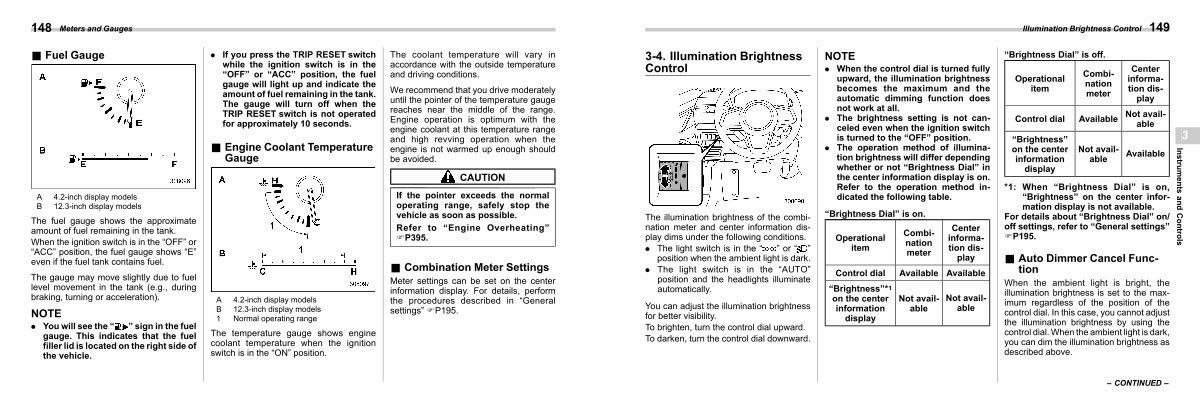

148
Meters and Gauges
& Fuel Gauge
A B
4.2-inch display models 12.3-inch display models s03ad07
The fuel gauge shows the approximate amount of fuel remaining in the tank.
When the ignition switch is in the“ OFF” or“ ACC” position, the fuel gauge shows“ E” even if the fuel tank contains fuel.
The gauge may move slightly due to fuel level movement in the tank( e. g., during braking, turning or acceleration).
NOTE
. You will see the“” sign in the fuel gauge. This indicates that the fuel filler lid is located on the right side of the vehicle.
. If you press the TRIP RESET switch while the ignition switch is in the“ OFF” or“ ACC” position, the fuel gauge will light up and indicate the amount of fuel remaining in the tank. The gauge will turn off when the TRIP RESET switch is not operated for approximately 10 seconds.
& Engine Coolant Temperature Gauge s03ad08
A 4.2-inch display models B 12.3-inch display models 1 Normal operating range
The temperature gauge shows engine coolant temperature when the ignition switch is in the“ ON” position.
The coolant temperature will vary in accordance with the outside temperature and driving conditions.
We recommend that you drive moderately until the pointer of the temperature gauge reaches near the middle of the range. Engine operation is optimum with the engine coolant at this temperature range and high revving operation when the engine is not warmed up enough should be avoided.
CAUTION
If the pointer exceeds the normal operating range, safely stop the vehicle as soon as possible.
Refer to“ Engine Overheating” FP395.
& Combination Meter Settings s03ad16
Meter settings can be set on the center information display. For details, perform the procedures described in“ General settings” FP195.
