146

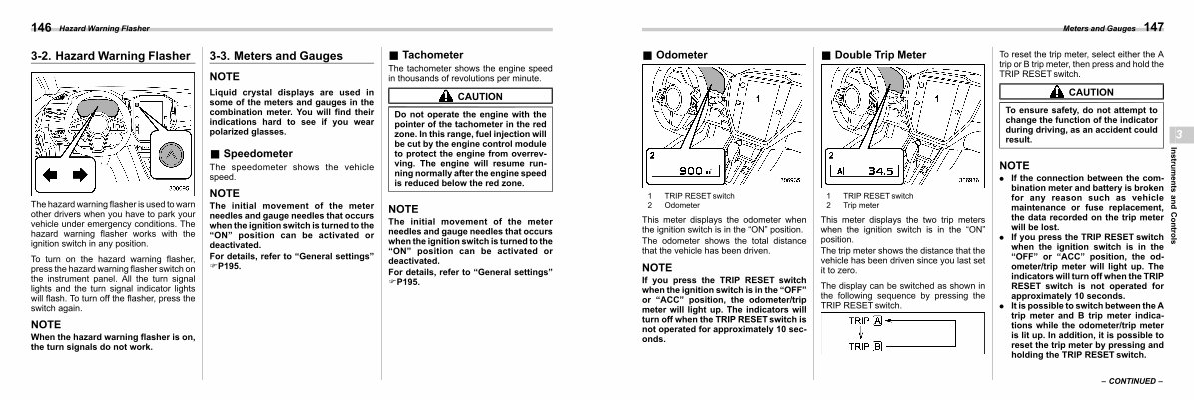

Hazard Warning Flasher
3-2 . Hazard Warning Flasher s03ab
The hazard warning flasher is used to warn other drivers when you have to park your vehicle under emergency conditions . The hazard warning flasher works with the ignition switch in any position .
To turn on the hazard warning flasher , press the hazard warning flasher switch on the instrument panel . All the turn signal lights and the turn signal indicator lights will flash . To turn off the flasher , press the switch again .
NOTE
When the hazard warning flasher is on , the turn signals do not work .
3-3 . Meters and Gauges s03ad
NOTE
Liquid crystal displays are used in some of the meters and gauges in the combination meter . You will find their indications hard to see if you wear polarized glasses .
& Speedometer s03ad03
The speedometer shows the vehicle speed .
NOTE
The initial movement of the meter needles and gauge needles that occurs when the ignition switch is turned to the “ ON ” position can be activated or deactivated .
For details , refer to “ General settings ” FP195 .
& Tachometer s03ad06
The tachometer shows the engine speed in thousands of revolutions per minute .
CAUTION
Do not operate the engine with the pointer of the tachometer in the red zone . In this range , fuel injection will be cut by the engine control module to protect the engine from overrevving . The engine will resume running normally after the engine speed is reduced below the red zone .
NOTE
The initial movement of the meter needles and gauge needles that occurs when the ignition switch is turned to the “ ON ” position can be activated or deactivated .
For details , refer to “ General settings ” FP195 .
