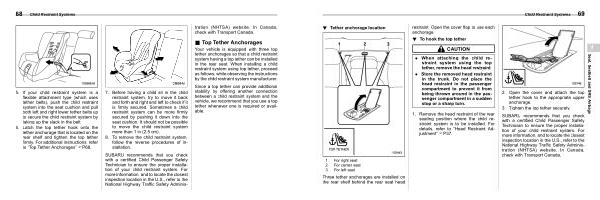

! Tether anchorage location |
s01ag0901 |
restraint . Open the cover flap to use each anchorage .
! To hook the top tether
|
CAUTION |
s01ag0902 |
1 |
1 For right seat 2 For center seat 3 For left seat |
. When attaching the child restraint system using the top tether , remove the head restraint .
. Store the removed head restraint in the trunk . Do not place the head restraint in the passenger compartment to prevent it from being thrown around in the passenger compartment in a sudden stop or a sharp turn .
1 . Remove the head restraint of the rear seating position where the child restraint system is to be installed . For details , refer to “ Head Restraint Adjustment ” FP37 .
|
2 . Open the cover and attach the top tether hook to the appropriate upper anchorage .
3 . Tighten the top tether securely .
SUBARU recommends that you check with a certified Child Passenger Safety Technician to ensure the proper installation of your child restraint system . For more information , and to locate the closest inspection location in the U . S ., refer to the National Highway Traffic Safety Administration ( NHTSA ) website . In Canada , check with Transport Canada .
|
Seat , Seatbelt and SRS Airbags |
||
Three tether anchorages are installed on the rear shelf behind the rear seat head |
