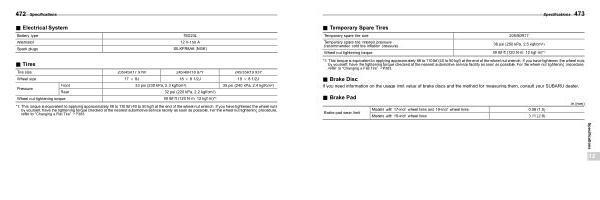

Specifications 473
& Temporary Spare Tires s12aa15
Temporary spare tire size |
205 / 50R17 |
|
Temporary spare tire inflation pressure
( recommended cold tire inflation pressure )
|
36 psi ( 250 kPa , 2.5 kgf / cm 2 ) |
Wheel nut tightening torque |
89 lbf · ft ( 120 N · m , 12 kgf · m )* 1 |
* 1 : This torque is equivalent to applying approximately 88 to 110 lbf ( 40 to 50 kgf ) at the end of the wheel nut wrench . If you have tightened the wheel nuts by yourself , have the tightening torque checked at the nearest automotive service facility as soon as possible . For the wheel nut tightening procedure , refer to “ Changing a Flat Tire ” FP383 .
& Brake Disc s12aa18
If you need information on the usage limit value of brake discs and the method for measuring them , consult your SUBARU dealer .
& Brake Pad
Brake pad wear limit s12aa28
Models with 17-inch wheel tires and 18-inch wheel tires |
0.06 ( 1.5 ) |
Models with 19-inch wheel tires |
0.11 ( 2.8 ) |
in ( mm )
Specifications
12
